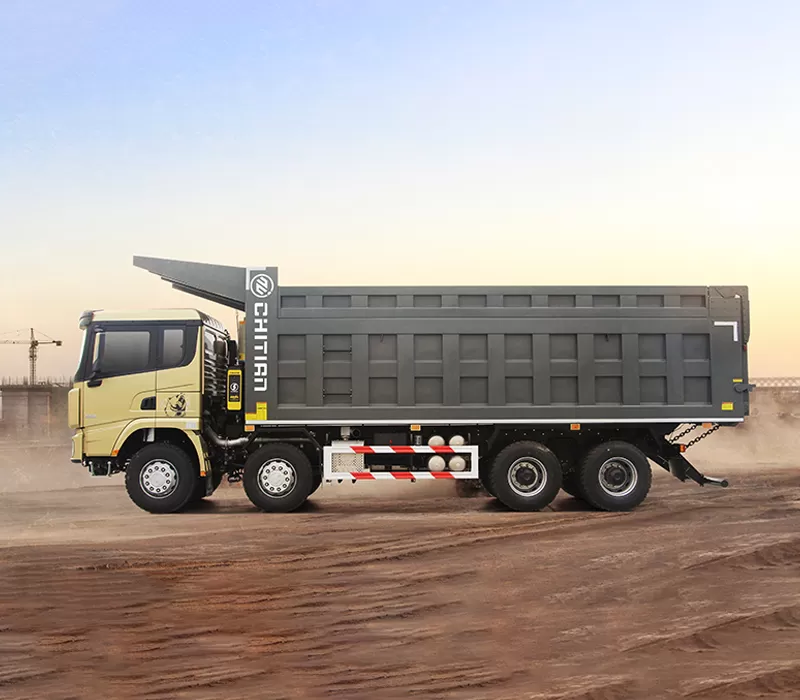

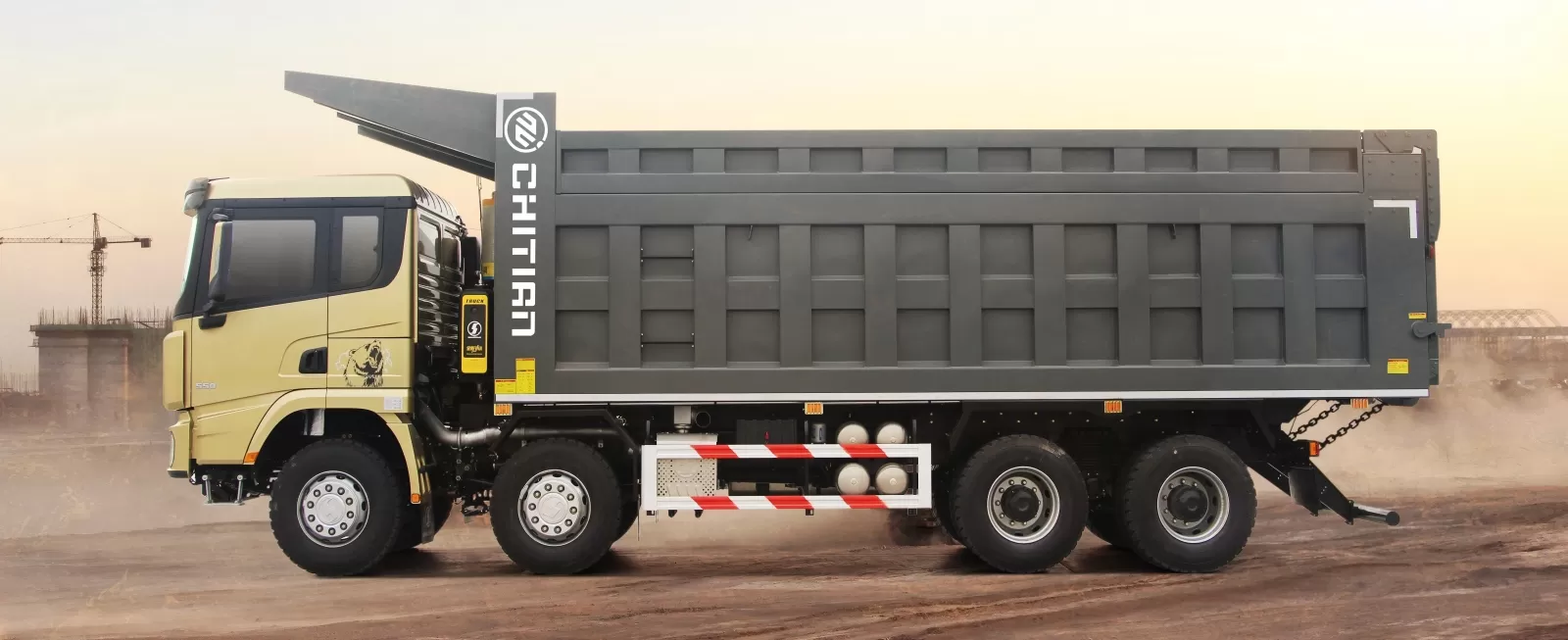

Rear-tipping dump truck with reinforced large slant rib box design, ideal for mines, construction, and ports. Lightweight, efficient.
| Body Type | Rectangular steel body |
| Drive Type | 8x4 |
Product Introduction

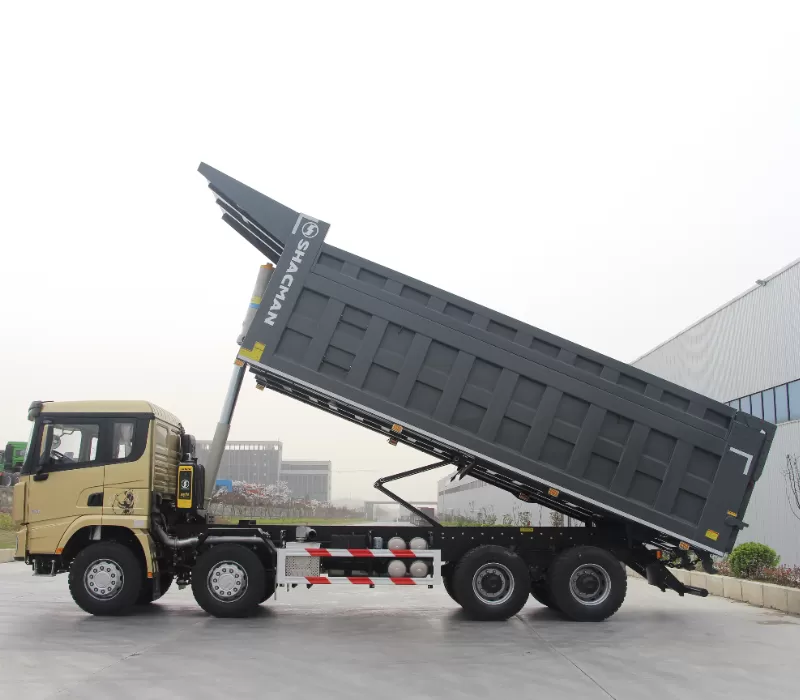

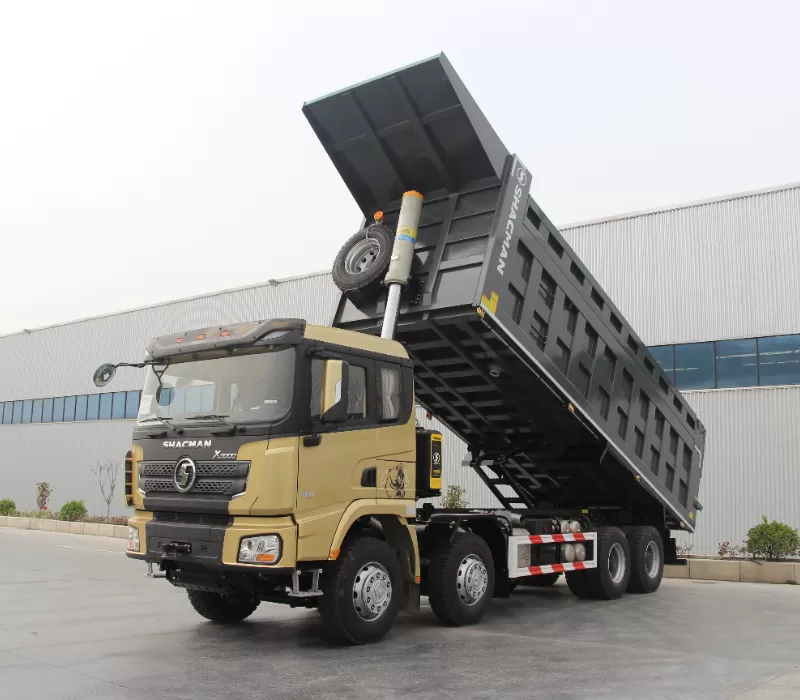

The Rear-Tipping Dump Truck is engineered for the efficient transportation of materials such as sand, gravel, ores, and coal. It features a front-mounted hydraulic lifting system, offering strong power, high efficiency, and safe, stable operation. This vehicle is widely used in mining sites, construction fields, and ports, particularly for transporting sand, gravel, ores, and coal. The cargo bed is designed with large slanted reinforcements, and a multi-stage piston hydraulic cylinder is mounted at the front of the bed. The upper end of the cylinder connects to the front wall of the cargo bed, while the lower end is linked to the auxiliary frame. The hydraulic cylinder's long stroke makes lifting easier and is suitable for cargo beds of various lengths and specifications.
![{vo[alt]}](data/watermark/main/20250410/67f769a8691b2_.webp)
![{vo[alt]}](data/watermark/main/20250410/67f769b7cbf43_.webp)
![{vo[alt]}](data/watermark/main/20250410/67f769b81ab63_.webp)
![{vo[alt]}](data/watermark/main/20250410/67f769b8360e9_.webp)
![{vo[alt]}](data/watermark/main/20250410/67f769b8583d1_.webp)
![{vo[alt]}](data/watermark/main/20250410/67f769b875898_.webp)
PRODUCT FEATURES
High-Quality Shacman Chassis: Providing a Solid Foundation for Your Transport Needs
The chassis we use is sourced from Shacman, an industry-leading manufacturer of heavy-duty trucks. Shacman chassis are renowned for their exceptional load-bearing capacity, stability, and durability, making them particularly suitable for harsh environments such as mining sites and construction sites.
More Features +
Chitian Hydraulic System : Engineered for Excellence
With nearly 30 years of experience in designing and manufacturing hydraulic cylinders, Chitian has become a trusted name in the industry. Our hydraulic cylinders are equipped with high-quality seals imported from Germany, and more than 300,000 units have been installed on vehicles worldwide. Three key features make our hydraulic cylinders stand out:
More Features +
Chitian High-Polymer Polymer Hydraulic Oil Tank: Designed for Harsh Environments
Widely used in Chitian dump trucks, this high-performance polymer hydraulic oil tank is specially designed to withstand extreme environmental conditions—from scorching heat to severe cold, The primary material used is high-density polyethylene (HDPE), imported from Saudi Arabia. This oil tank offers several key advantages:
More Features +

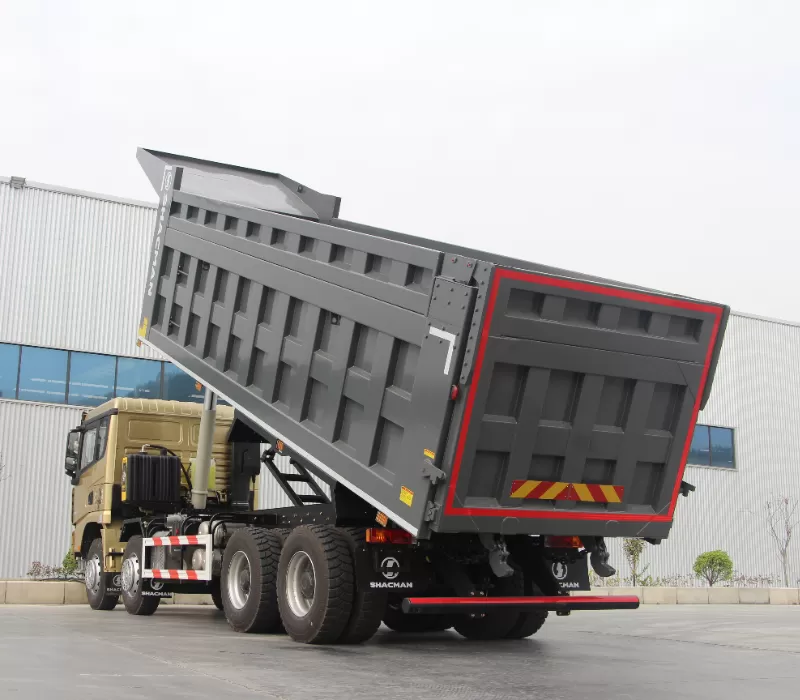

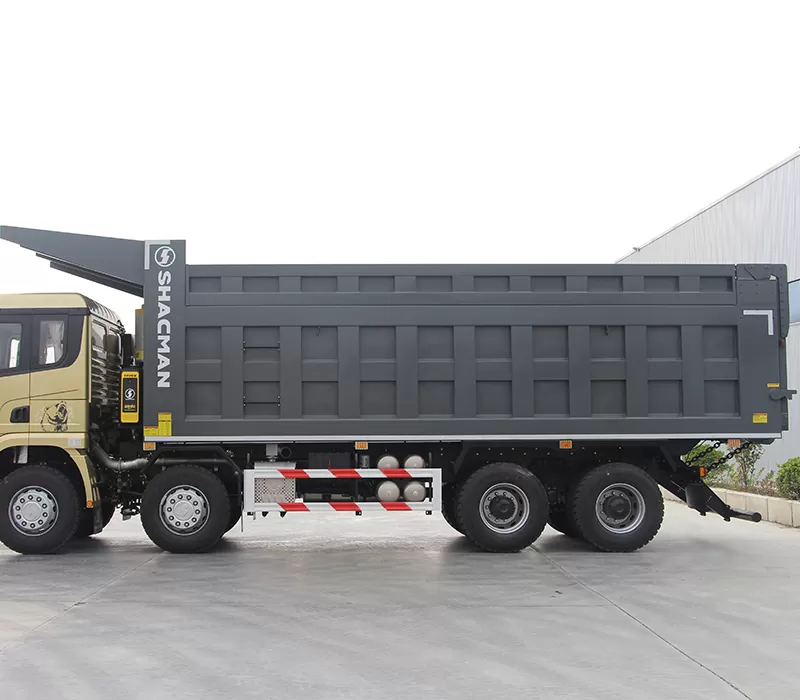

The traditional rectangular box body is reinforced with horizontal and vertical ribs, enhancing the strength and stability of the body. This design improves the load-bearing capacity of the box, preventing deformation, making it especially suitable for heavy-duty transportation. The addition of these ribs also increases the durability of the body, allowing it to withstand greater impacts and pressure, thus extending its service life.
More Features +

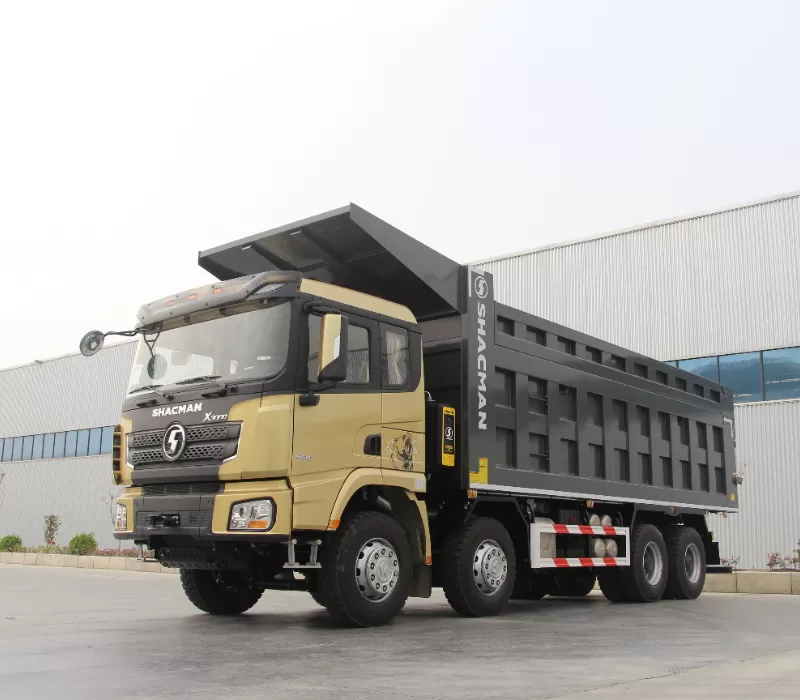

The extended front overhang design provides better protection for the cabin and the driver, enhancing safety during operation.
More Features +CUSTOM SERVICES OFFERED BY CHITIAN
As a leader in the dump truck superstructure industry, Chitian not only focuses on producing high-quality, environmentally friendly, and energy-efficient dump truck superstructures but also offers a comprehensive range of customizable services to meet the diverse needs of different industries and application scenarios. Our custom services are flexible and varied, covering design, production, after-sales, and more, all aimed at providing optimal solutions that help clients improve efficiency, reduce operational costs, and promote sustainable development.
