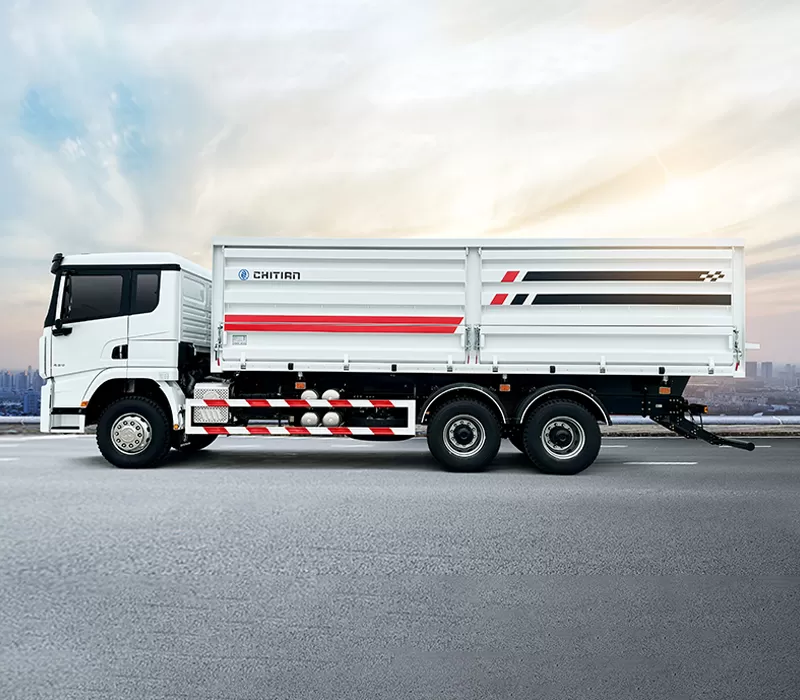

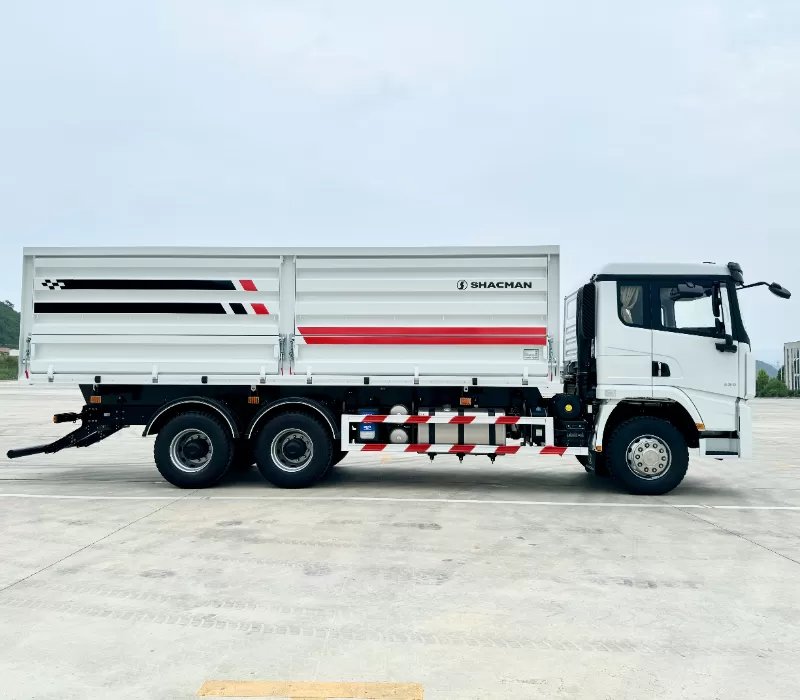

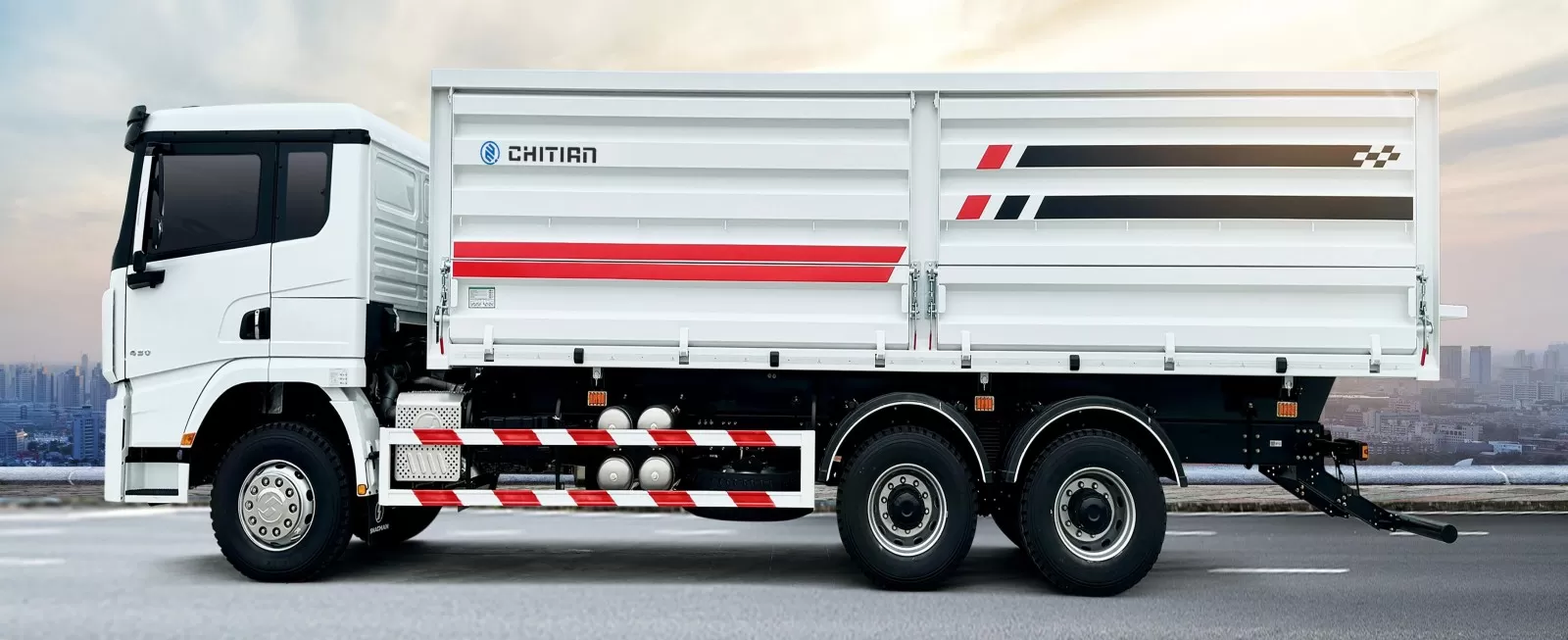

Side Tipping Dump Truck (Corrugated Edge)

The Side-Tipping Dump Truck is a type of dump truck that uses a side-tipping unloading system with side-opening doors for material discharge.


Body TypeCorrugated edge steel body
Drive Type6x4

Product Introduction

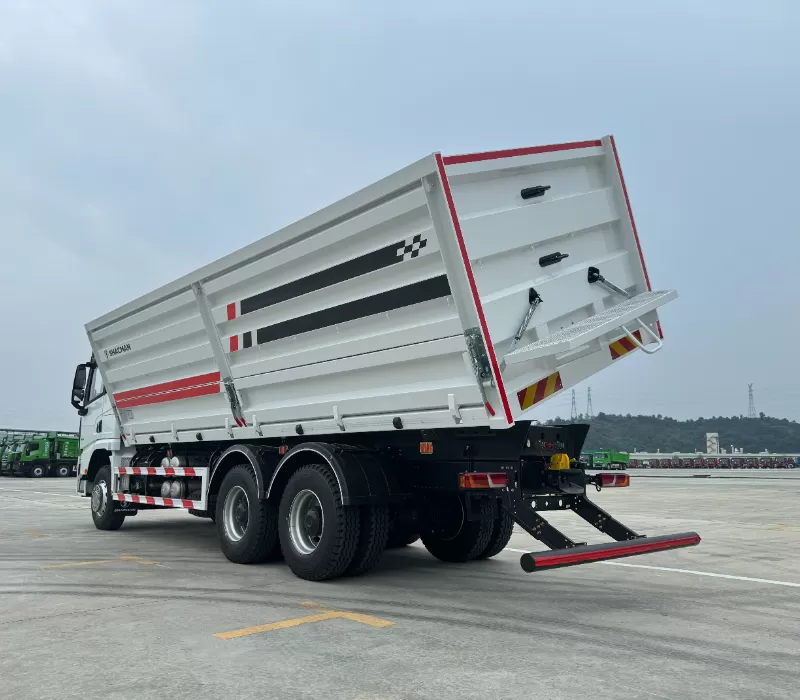

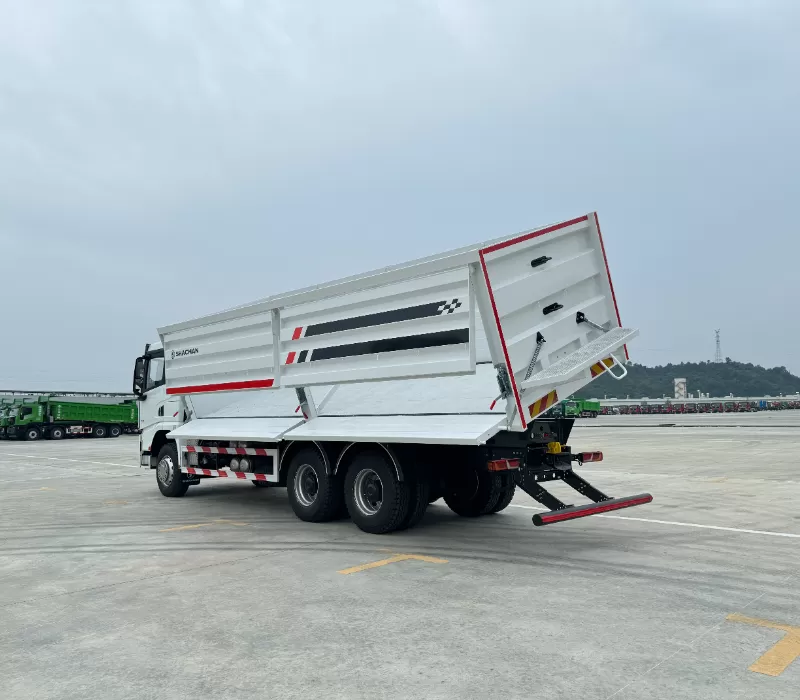

The Side-Tipping Dump Truck is a heavy-duty transport vehicle specially designed for complex working conditions. It features a side-tipping unloading system, allowing the cargo bed to unload to the left or right. The lifting process is powered by a set of multi-stage piston cylinders (3 or 4 cylinders), mounted in the middle of the auxiliary frame. The cylinders are arranged in a parallel line to the auxiliary frame, with the lower end fixed on the lower cylinder bracket, and the upper end connected to the longitudinal beams of the cargo bed. This truck is primarily used for transporting light-density materials such as coal, sand, and grain, making it one of the best choices for such applications.

{vo[alt]}
{vo[alt]}
{vo[alt]}
{vo[alt]}
{vo[alt]}
{vo[alt]}
{vo[alt]}
Side Tipping Dump Truck (Corrugated Edge)

PRODUCT FEATURES

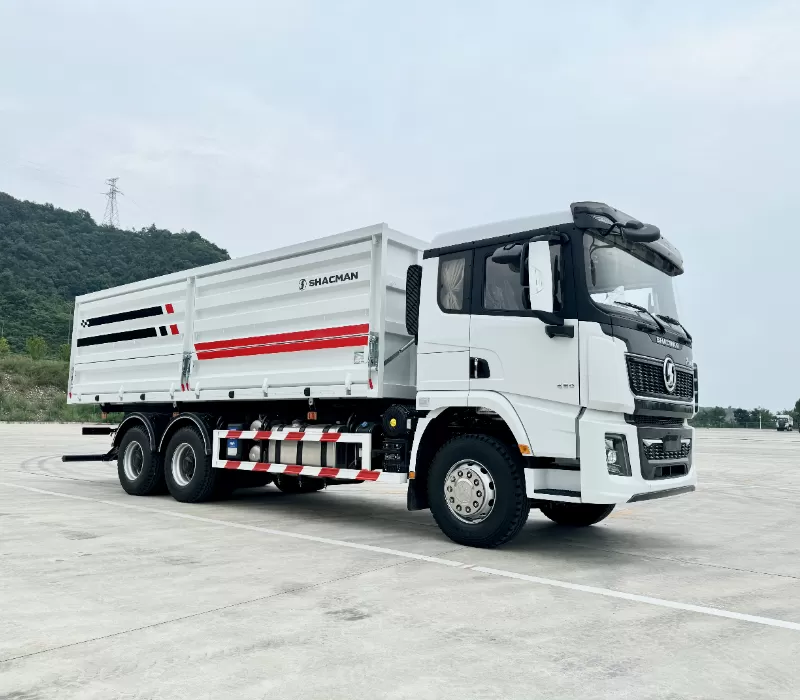

High-Quality Shacman Chassis: Providing a Solid Foundation for Your Transport Needs

High-Quality Shacman Chassis: Providing a Solid Foundation for Your Transport Needs

The chassis we use is sourced from Shacman, an industry-leading manufacturer of heavy-duty trucks. Shacman chassis are renowned for their exceptional load-bearing capacity, stability, and durability, making them particularly suitable for harsh environments such as mining sites and construction sites.

More Features +
Chitian Hydraulic System : Engineered for Excellence

Chitian Hydraulic System : Engineered for Excellence

With nearly 30 years of experience in designing and manufacturing hydraulic cylinders, Chitian has become a trusted name in the industry. Our hydraulic cylinders are equipped with high-quality seals imported from Germany, and more than 300,000 units have been installed on vehicles worldwide. Three key features make our hydraulic cylinders stand out:

More Features +
Chitian High-Polymer Polymer Hydraulic Oil Tank: Designed for Harsh Environments

Chitian High-Polymer Polymer Hydraulic Oil Tank: Designed for Harsh Environments

Widely used in Chitian dump trucks, this high-performance polymer hydraulic oil tank is specially designed to withstand extreme environmental conditions—from scorching heat to severe cold, The primary material used is high-density polyethylene (HDPE), imported from Saudi Arabia. This oil tank offers several key advantages:

More Features +
Adaptability to Different Work Environments & Flexible Unloading

Adaptability to Different Work Environments & Flexible Unloading

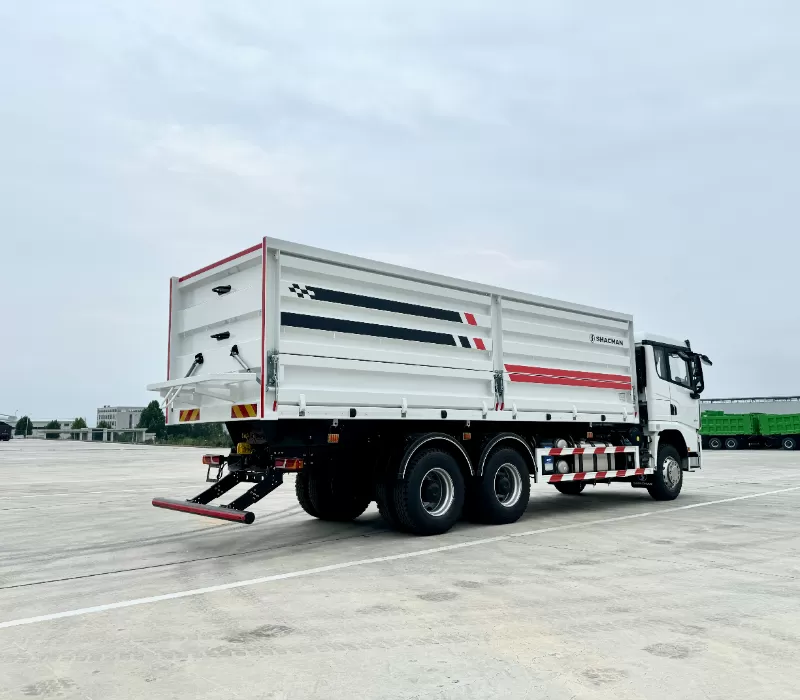

The design that allows unloading from either side provides the dump truck with greater maneuverability in narrow or complex areas, overcoming space constraints. The addition of a rear platform enables operators to easily inspect the interior of the cargo bed, ensuring the truck can adapt to various working conditions.

More Features +

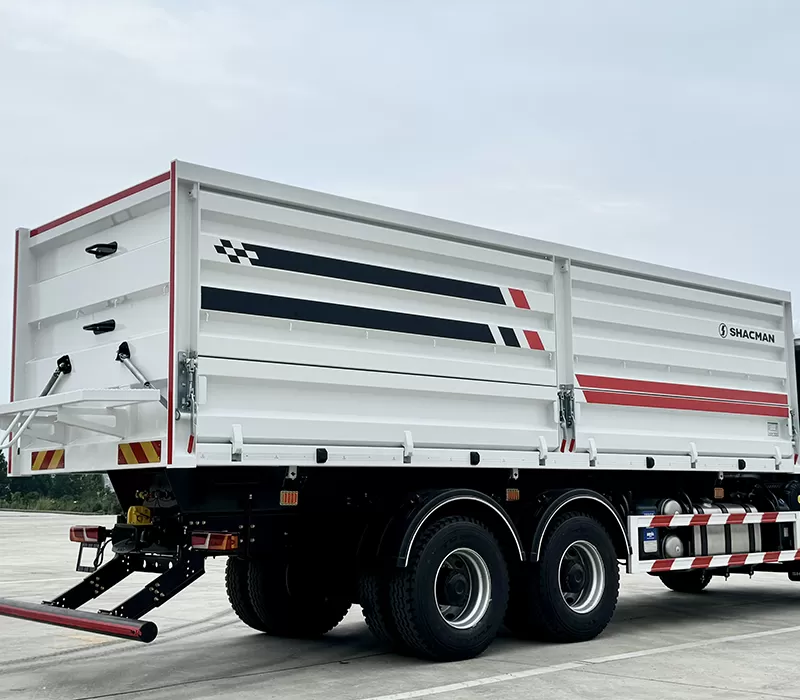

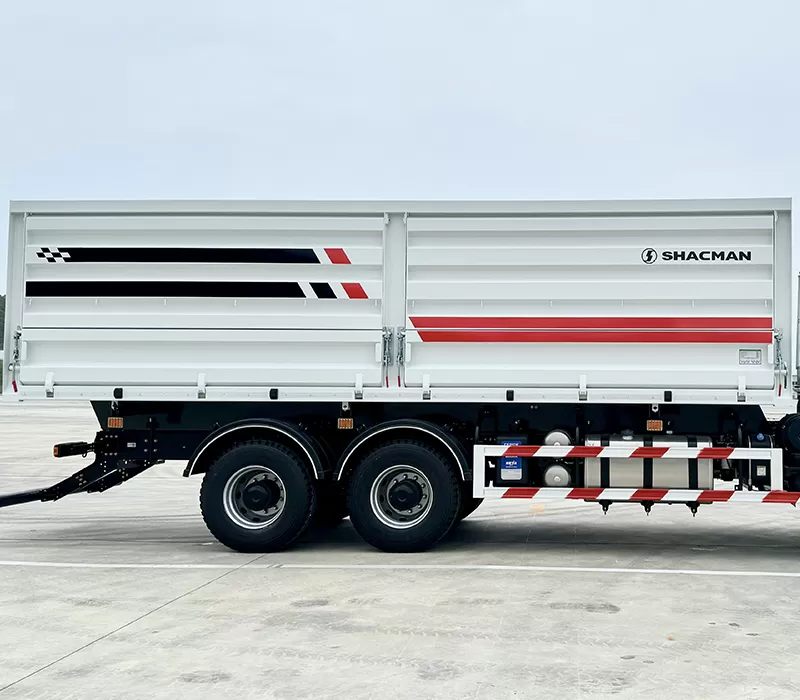

Corrugated Panel Cargo Bed Structure

Corrugated Panel Cargo Bed Structure

The cargo bed's exterior features wavy or corrugated panel design, where the curved shape enhances the rigidity and bending resistance of the panels, maintaining high strength even with thinner materials. This geometric structure achieves a lightweight design, effectively reducing the vehicle's weight while ensuring strength, ultimately improving transportation efficiency.

More Features +
High-Strength Cargo Box

High-Strength Cargo Box

The cargo box is made of 700MPa high-strength steel, with the side panels rolled and formed in a single pass. This design offers the advantages of light weight, high strength, an aesthetic appearance, and a long service life.

More Features +

CUSTOM SERVICES OFFERED BY CHITIAN

As a leader in the dump truck superstructure industry, Chitian not only focuses on producing high-quality, environmentally friendly, and energy-efficient dump truck superstructures but also offers a comprehensive range of customizable services to meet the diverse needs of different industries and application scenarios. Our custom services are flexible and varied, covering design, production, after-sales, and more, all aimed at providing optimal solutions that help clients improve efficiency, reduce operational costs, and promote sustainable development.
