Three-Way Tipping Dump Trailer

High-Quality Shacman Chassis: Providing a Solid Foundation for Your Transport Needs

The chassis we use is sourced from Shacman, an industry-leading manufacturer of heavy-duty trucks. Shacman chassis are renowned for their exceptional load-bearing capacity, stability, and durability, making them particularly suitable for harsh environments such as mining sites and construction sites.

Chitian Hydraulic System : Engineered for Excellence

With nearly 30 years of experience in designing and manufacturing hydraulic cylinders, Chitian has become a trusted name in the industry. Our hydraulic cylinders are equipped with high-quality seals imported from Germany, and more than 300,000 units have been installed on vehicles worldwide. Three key features make our hydraulic cylinders stand out:

Chitian High-Polymer Polymer Hydraulic Oil Tank: Designed for Harsh Environments

Widely used in Chitian dump trucks, this high-performance polymer hydraulic oil tank is specially designed to withstand extreme environmental conditions—from scorching heat to severe cold, The primary material used is high-density polyethylene (HDPE), imported from Saudi Arabia. This oil tank offers several key advantages:

Adapts to Various Operating Environments with Flexible Unloading Operations

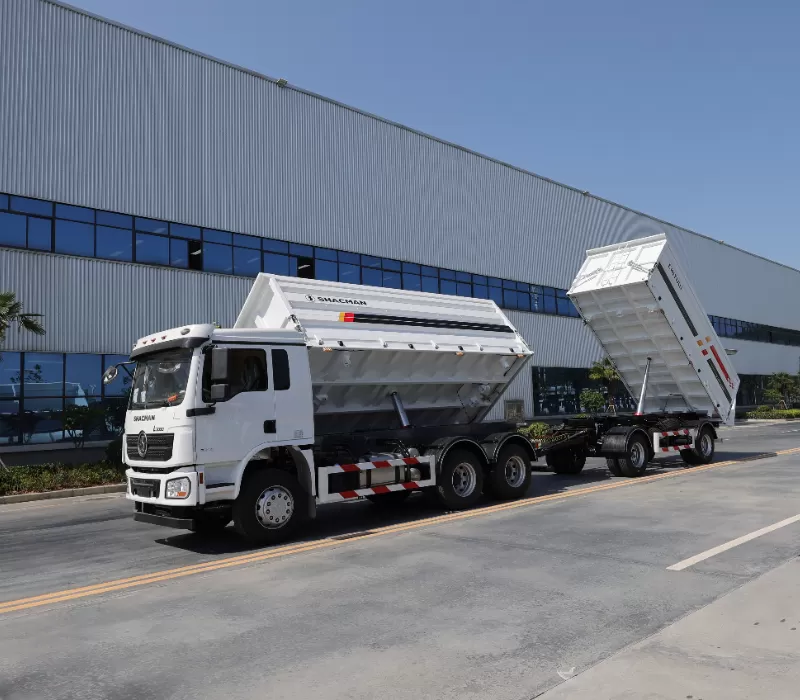

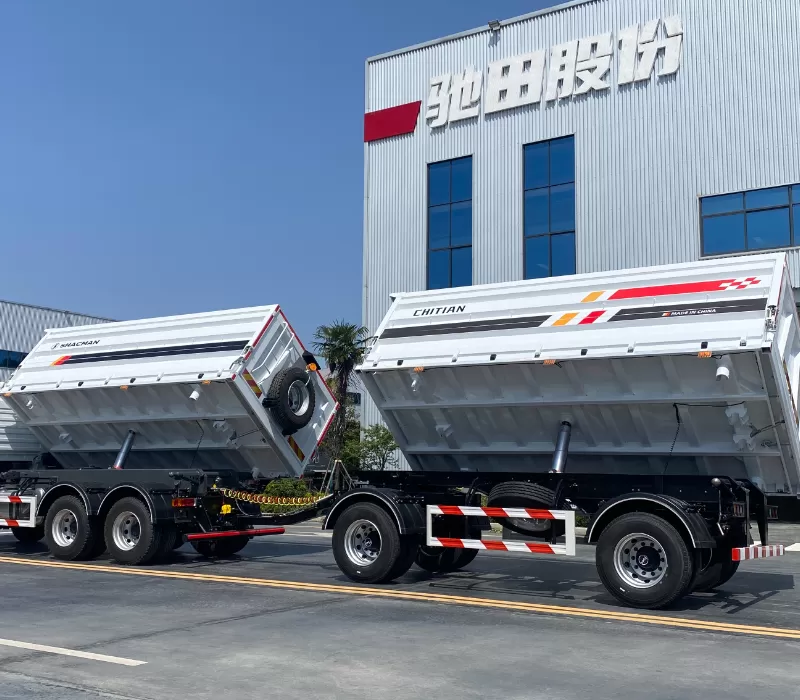

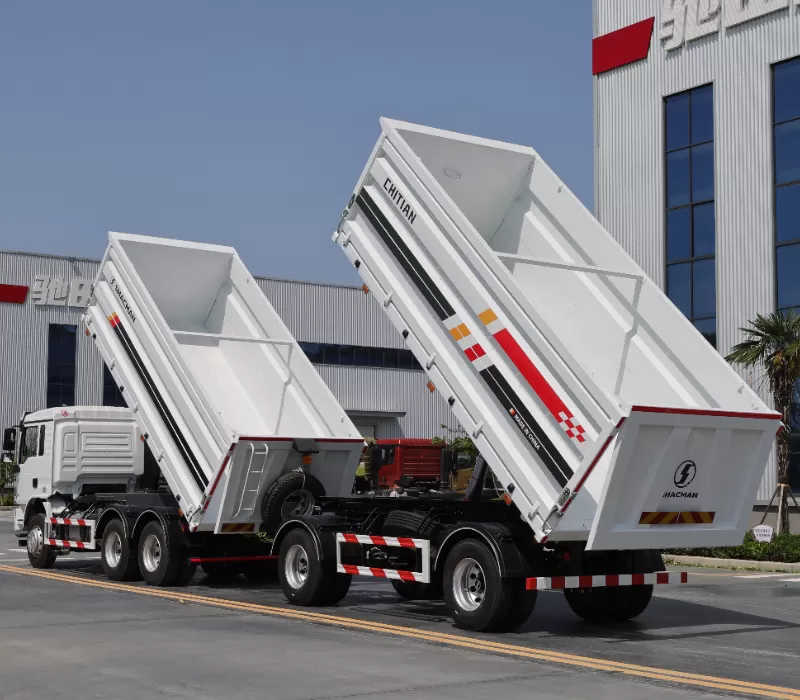

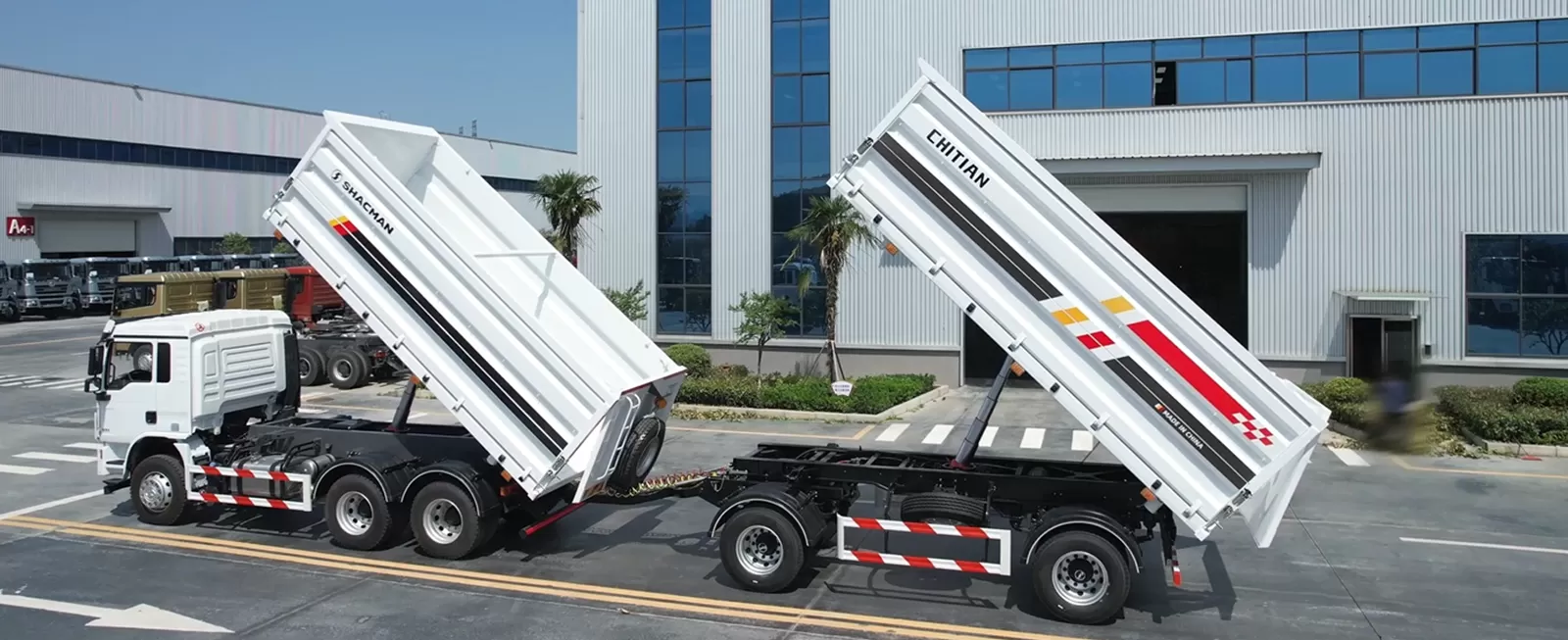

The box is equipped with three unloading modes—left, right, and tail—allowing operators to select the optimal method based on on-site conditions. This versatility fully addresses complex unloading scenarios and overcomes spatial limitations. Whether operating on confined, intricate construction sites or in high-frequency unloading areas such as mines, ports, and grain storage facilitie

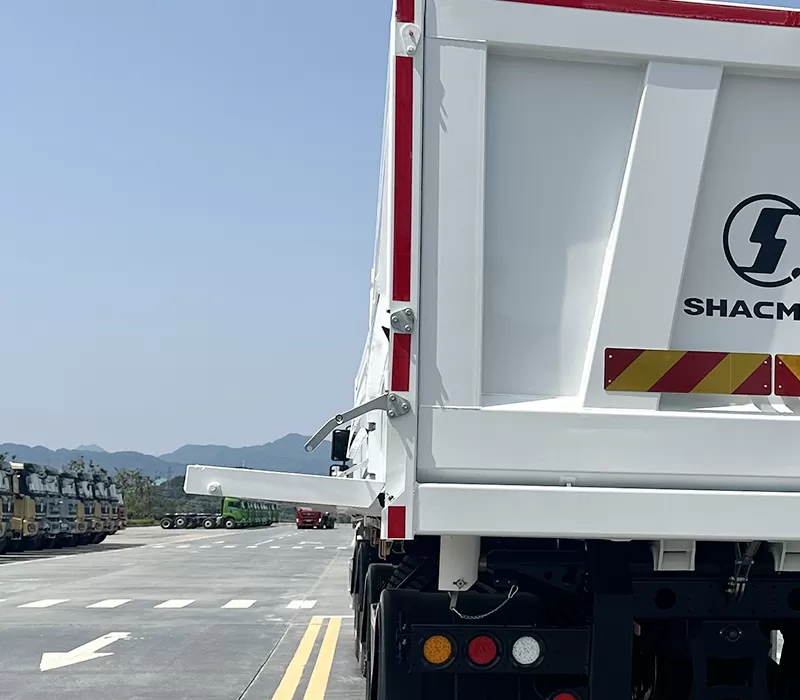

Side door locking device

The mechanical door lock is designed to control and secure the opening and closing of the dump truck's cargo doors. It ensures that the cargo doors remain securely closed during transportation and can be smoothly unlocked during unloading, guaranteeing the safe and efficient operation of the dump body.

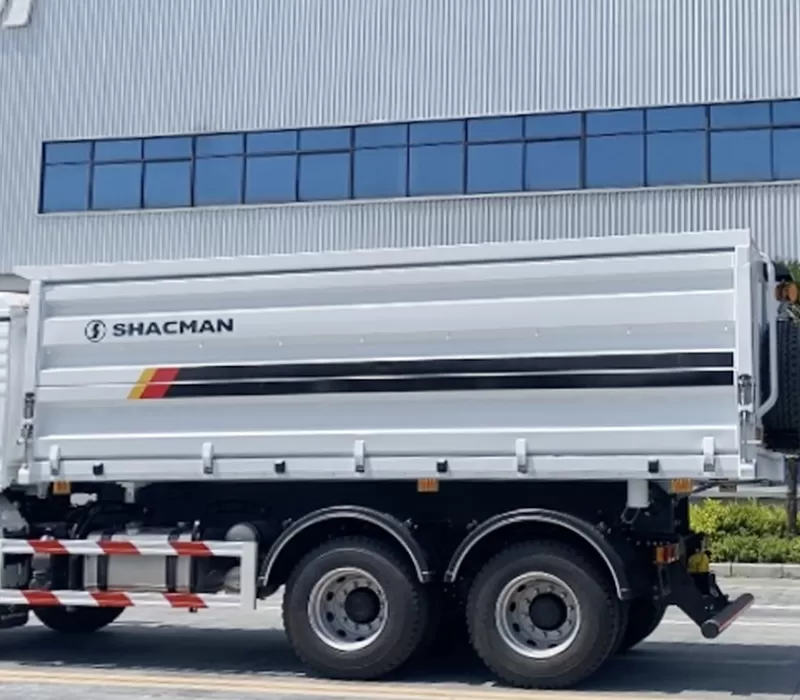

Corrugated Side Panel Structure

The cargo body features an exterior panel design with a wave-like or corrugated structure. This curved shape effectively enhances panel rigidity and bending resistance, ensuring high strength even when using thinner materials. By leveraging geometric design principles, the structure achieves a lightweight configuration while maintaining durability, ultimately improving transport efficiency.

Chassis Components

The trailer chassis load-bearing system incorporates components from internationally recognized brands, ensuring high reliability and ease of maintenance. These well-established products provide superior durability and performance, minimizing downtime and enhancing operational efficiency.

Painting Process

The entire vehicle undergoes an advanced robotic powder coating process, incorporating 18 meticulous steps, including shot blasting, degreasing, high-temperature baking, and rapid cooling for curing. This process significantly enhances salt spray resistance, weather durability, and gloss compared to conventional paint coatings. The final paint film quality meets international industry standards, ensuring long-lasting protection and an aesthetically superior finish.
