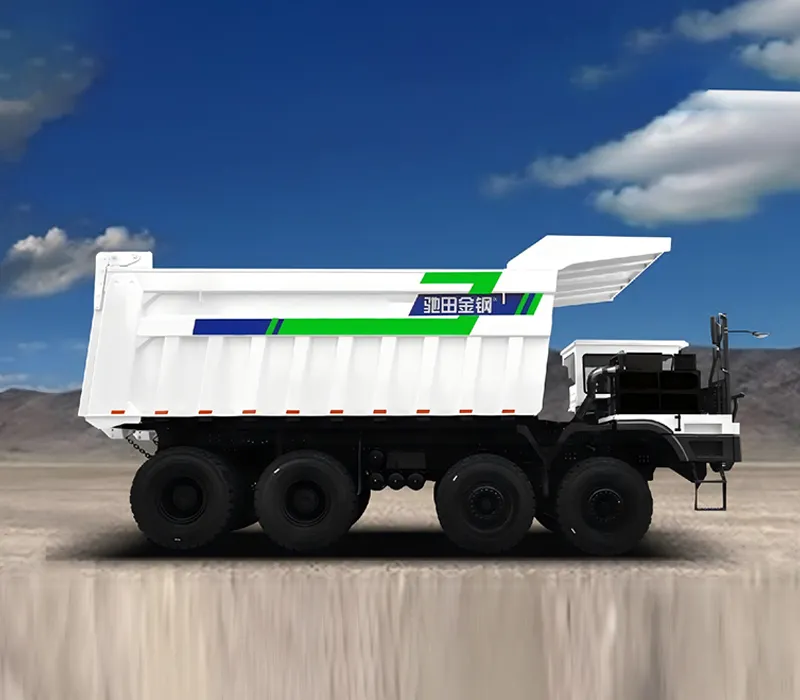

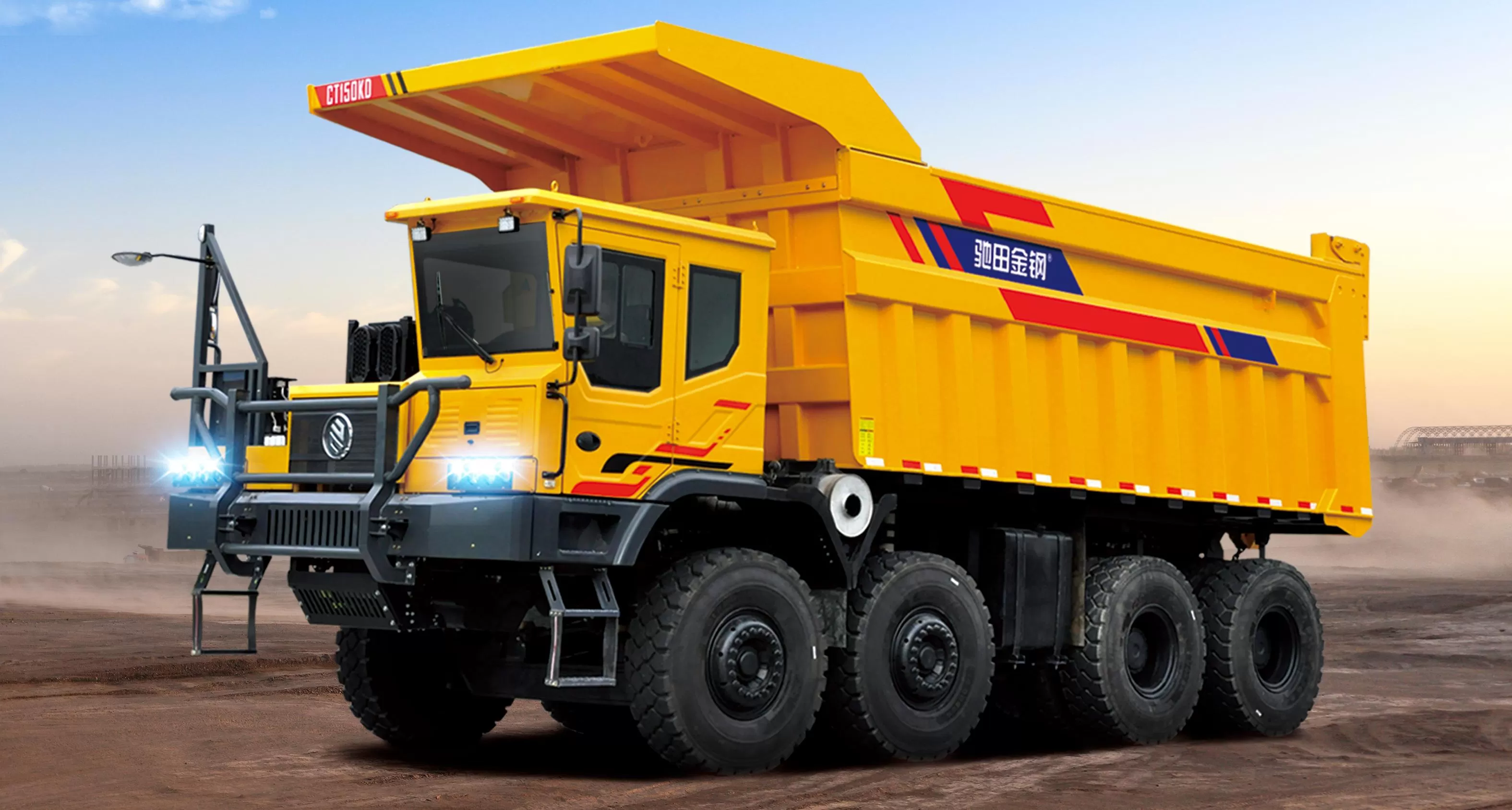

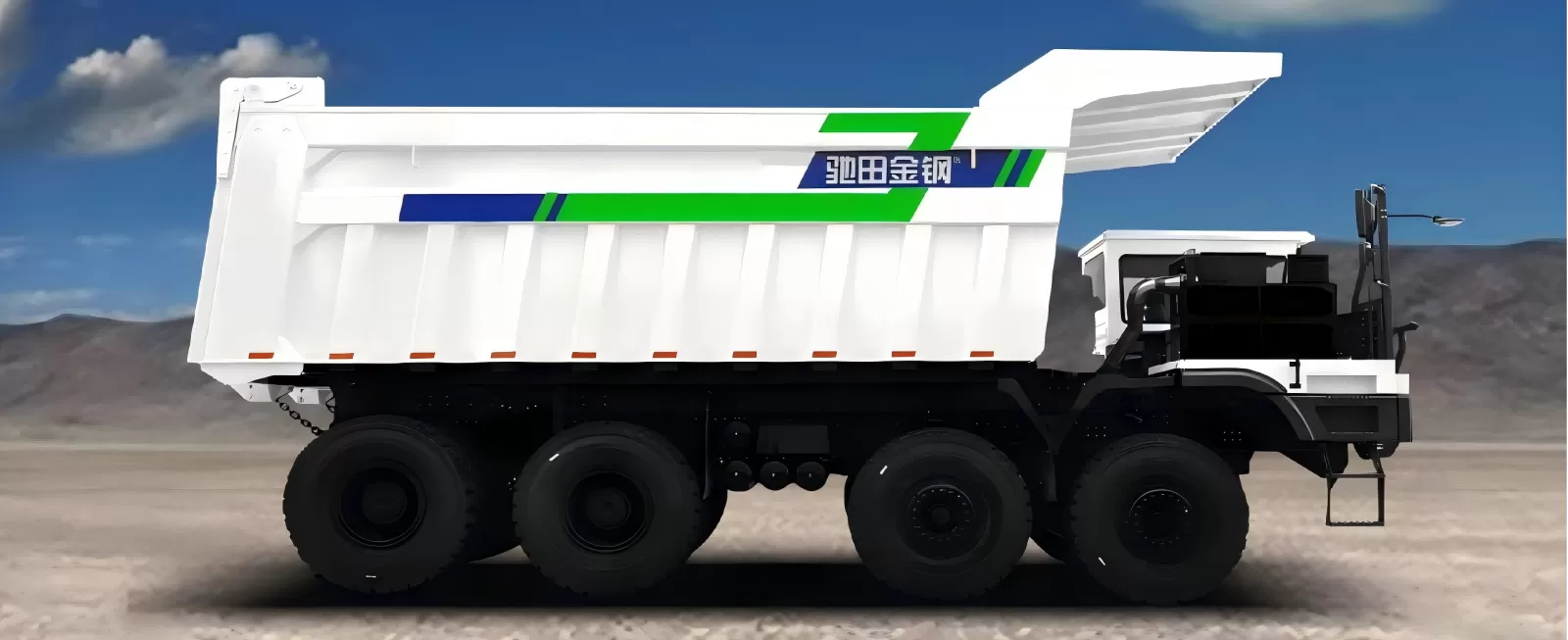

Off-Road Mining Dump Truck CT150A

The Chitian CT150A Ultimate Edition is an off-road wide-body mining dump truck that supports steer-by-wire chassis and autonomous driving. It is primarily used in open-pit coal mines, non-coal mining operations, and water conservancy & hydropower projects.

Body Type	U-Shaped steel body
Drive Type	8x4
Volume	55m³

Product Introduction

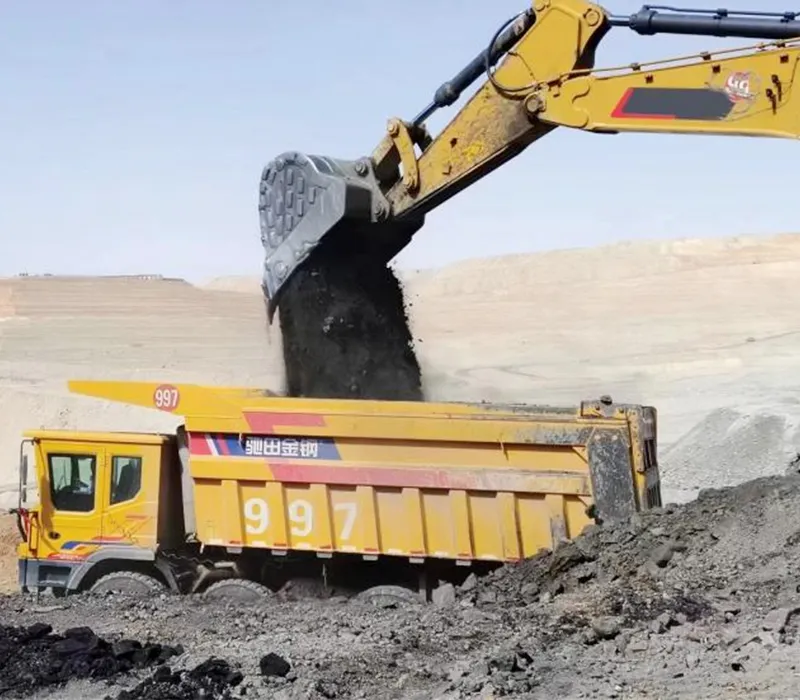

The Chitian Jingang CT150A Ultimate Edition Off-road Mining Dump Truck is primarily used in open-pit coal mines, non-coal mining operations, and water conservancy & hydropower projects. With 16 years of technological expertise and industry experience, this upgraded 150-ton model supports hybrid and pure electric power options.

The model features a rigid chassis structure and supports the integration of steer-by-wire chassis and autonomous driving functions, adapting to the future needs of mining automation. The CT150A is designed to significantly reduce the consumption of tires and other consumables, while maintaining exceptional transportation efficiency in harsh environments.

With its outstanding safety and high efficiency, the Chitian CT150A is the ideal choice for both the mining and construction industries, offering reliable performance and cost-effective solutions in the most challenging working conditions.

PRODUCT FEATURES

Multiple Power Options and Autonomous Driving

The CT150A Ultimate Edition offers optional hybrid or pure electric powertrains, allowing for flexible selection of low-carbon or zero-carbon energy sources to reduce dependence on traditional fossil fuels and decrease carbon emissions. Additionally, the CT150A Ultimate Edition supports steer-by-wire chassis and autonomous driving, making it adaptable to the future automation needs of the mining industry.

More Features +

Rigid frame

With high structural strength, it effectively reduces chassis deformation and extends the service life. Excellent axle load distribution ensures outstanding ride stability, significantly reduces chassis torsion, enhances structural safety, and features a four-circuit braking system for superior braking performance.

More Features +

Three-axle to four-axle conversion

High load capacity, high safety, fully hydraulic steering system, dual-axle steering 8*4 drive for safer heavy-duty operation. Equipped with dual balance suspension patent technology, ensuring balanced load and stable operation, with a synchronized dual-bridge steering system for flexible maneuverability.

More Features +

Powerful drive system

Equipped with a mining version high-power engine + reinforced mining version gearbox + large-tonnage construction vehicle axles, offering high torque and strong power. The vehicle has excellent climbing ability, high efficiency, fuel economy, and cost-effectiveness. Its compact structure allows it to handle various harsh road conditions perfectly.

More Features +

Chitian Hydraulic System : Engineered for Excellence

With nearly 30 years of experience in designing and manufacturing hydraulic cylinders, Chitian has become a trusted name in the industry. Our hydraulic cylinders are equipped with high-quality seals imported from Germany, and more than 300,000 units have been installed on vehicles worldwide. Three key features make our hydraulic cylinders stand out:

More Features +

Chitian High-Polymer Polymer Hydraulic Oil Tank: Designed for Harsh Environments

Widely used in Chitian dump trucks, this high-performance polymer hydraulic oil tank is specially designed to withstand extreme environmental conditions—from scorching heat to severe cold, The primary material used is high-density polyethylene (HDPE), imported from Saudi Arabia. This oil tank offers several key advantages:

More Features +

Tyre features

Significantly lowers the risk of front-wheel blowouts during heavy-load descents. 18% reduction in single-wheel load, enabling cross-platform tire applications and significantly reducing tire consumption.

More Features +

Super heavy load capacity, more efficient transportation

The mining version of the reinforced four-axle load-bearing structure provides more balanced load distribution, more stable operation, and more durable load-bearing components, easily handling various harsh and complex working conditions.

More Features +

Patent U-bolts

Provided with new upgraded leaf spring (U-bolt)system, with a bearing capacity higherthan 30%compared with those in its class

More Features +

Comfortable and flexible driving experience

The mining truck is equipped with a fully hydraulic steering system, making steering light and precise. It features a left-side single-cabin design with built-in air conditioning for year-round comfort. The unique collision beam + bumper + through-frame full collision protection system ensures a significant leap in safety performance.

More Features +
