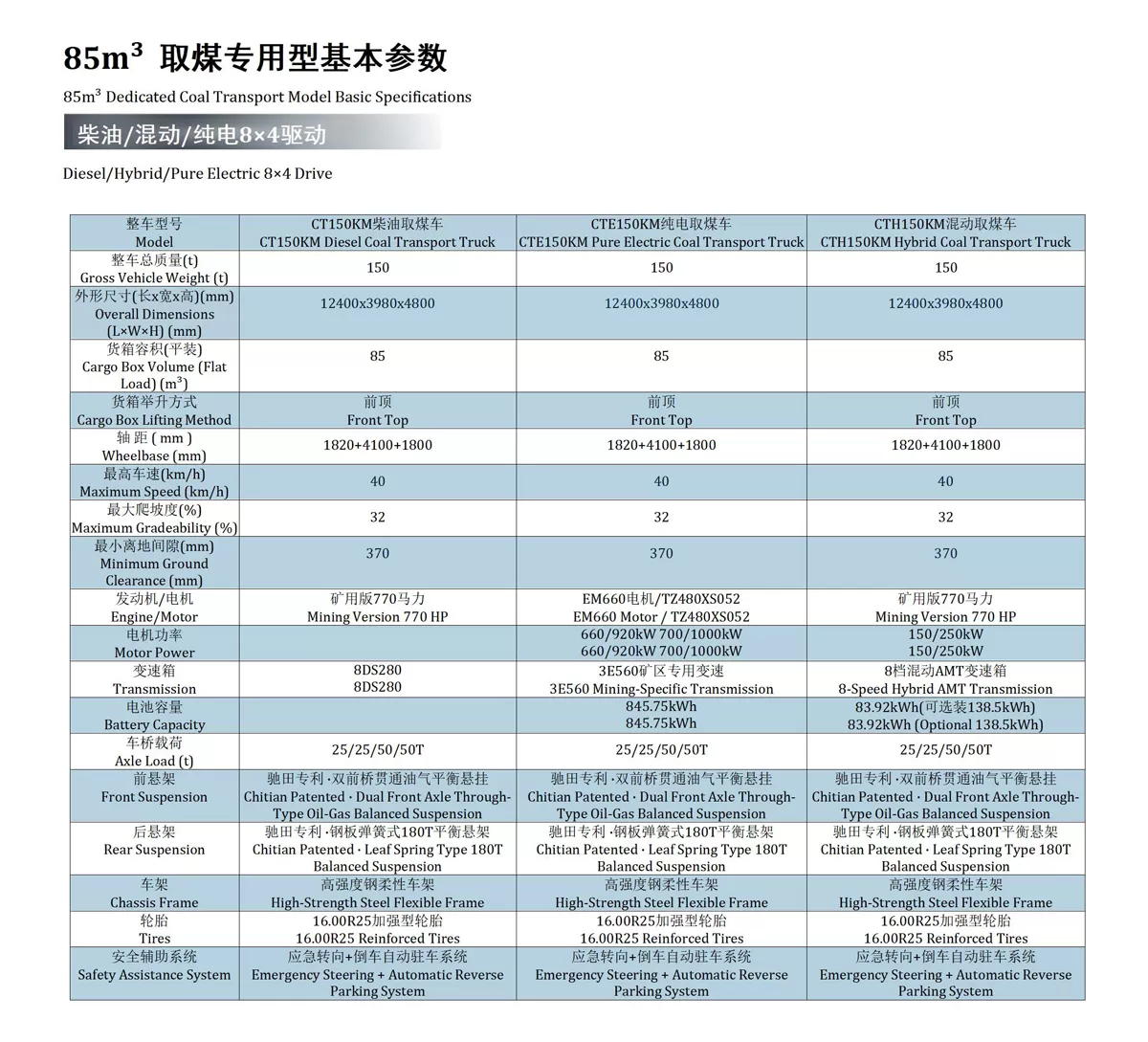

MAIN CONFIGURATION

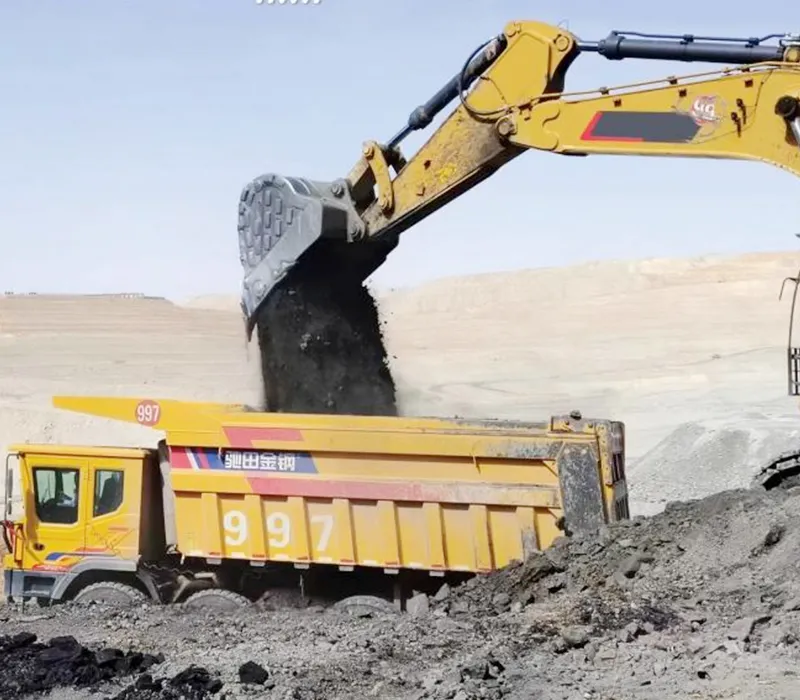

Chitian CT150KM is an off-road dump truck specially designed for coal transportation, featuring a large-capacity cargo body. It supports hybrid or pure electric power and is primarily used in open-pit coal mines.
| Body Type | U-Shaped steel body |
| Drive Type | 8x4/8x6 |
Volume | 85m³ |
Product Introduction

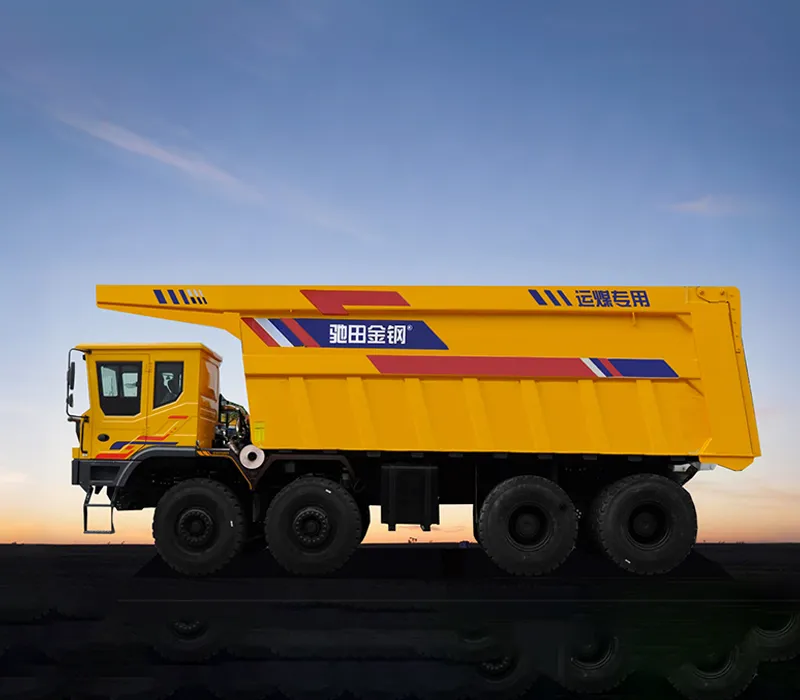

The Chitian CT150KM off-road mining dump truck is primarily used for coal transportation in open-pit mines. Designed as a dedicated off-highway coal-hauling dump truck, it features a massive 85m³ cargo capacity. This model supports diesel, pure electric, and hybrid power options, with additional compatibility for steer-by-wire chassis and autonomous driving functions.
The Chitian Jin’gang CT150KM coal-hauling dump truck boasts strong power, high payload capacity, exceptional durability, outstanding cost-effectiveness, and high parts interchangeability, offering significant advantages in operational costs. Engineered to withstand harsh environments while enhancing transport efficiency, this specialized mining truck is designed with the goal of becoming "China’s Most Efficient Coal-Hauling Mining Truck."
![{vo[alt]}](data/watermark/main/20250410/67f778a724b58_.webp)
PRODUCT FEATURES
Multiple Powertrain Options & Autonomous Driving
The CT150KM (dedicated coal-hauling model) offers a choice of hybrid, diesel, or pure electric powertrains, allowing for flexible selection of low-carbon or zero-carbon energy sources based on operational needs. This reduces reliance on traditional fossil fuels and lowers carbon emissions. Additionally, the vehicle can be equipped with a manual transmission if required.
More Features +

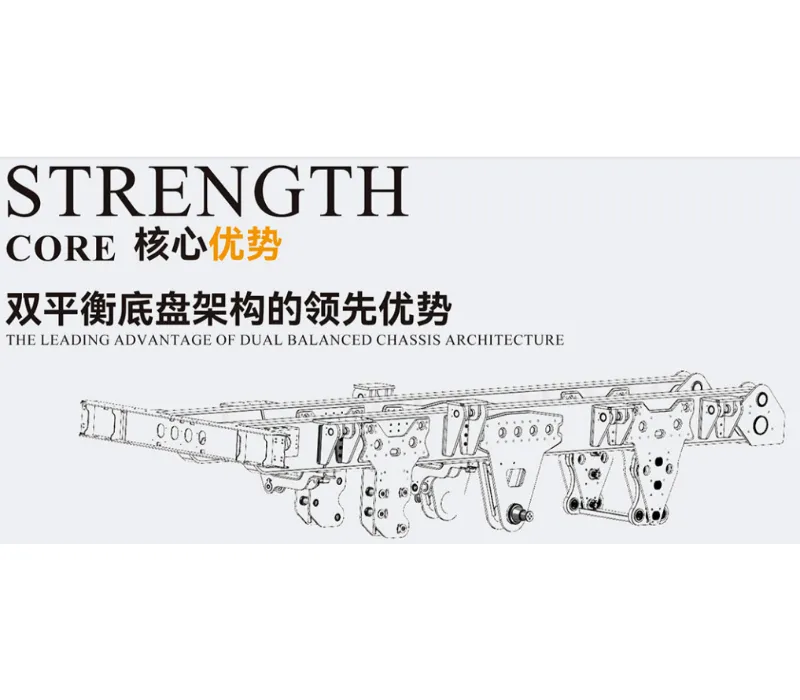

High-Strength Steel Flexible Frame
Optimized axle load distribution ensures exceptional driving stability while significantly reducing frame torsion, enhancing overall structural safety. Additionally, the four-circuit braking system delivers outstanding braking performance.
More Features +
Three-axle to four-axle conversion
High load capacity, high safety，equipped with a fully hydraulic steering system and dual-axle steering, the 8×4 drive ensures safer heavy-load operation, with an optional upgrade to 8×6 drive. The patented dual-balance suspension technology evenly distributes loads, ensuring stable performance. Additionally, the dual-axle synchronized steering system enhances maneuverability.
More Features +
Equipped with a mining version high-power engine + reinforced mining version gearbox + large-tonnage construction vehicle axles, offering high torque and strong power. The vehicle has excellent climbing ability, high efficiency, fuel economy, and cost-effectiveness. Its compact structure allows it to handle various harsh road conditions perfectly.
More Features +
Chitian Hydraulic System : Engineered for Excellence
With nearly 30 years of experience in designing and manufacturing hydraulic cylinders, Chitian has become a trusted name in the industry. Our hydraulic cylinders are equipped with high-quality seals imported from Germany, and more than 300,000 units have been installed on vehicles worldwide. Three key features make our hydraulic cylinders stand out:
More Features +
Chitian High-Polymer Polymer Hydraulic Oil Tank: Designed for Harsh Environments
Widely used in Chitian dump trucks, this high-performance polymer hydraulic oil tank is specially designed to withstand extreme environmental conditions—from scorching heat to severe cold, The primary material used is high-density polyethylene (HDPE), imported from Saudi Arabia. This oil tank offers several key advantages:
More Features +
Significantly lowers the risk of front-wheel blowouts during heavy-load descents. 18% reduction in single-wheel load, enabling cross-platform tire applications and significantly reducing tire consumption.
More Features +
Extra-Large Cargo Capacity for Greater Transport Efficiency
With an 85m³ cargo capacity and a four-axle load-bearing structure, the truck ensures more balanced load distribution, stable operation, and enhanced durability of load-bearing components. It is designed to easily handle the complex working conditions of open-pit coal mines.
More Features +
Provided with new upgraded leaf spring (U-bolt)system, with a bearing capacity higherthan 30%compared with those in its class
More Features +
Comfortable and flexible driving experience
The mining truck is equipped with a fully hydraulic steering system, making steering light and precise. It features a left-side single-cabin design with built-in air conditioning for year-round comfort. The unique collision beam + bumper + through-frame full collision protection system ensures a significant leap in safety performance.
More Features +MAIN CONFIGURATION
CUSTOM SERVICES OFFERED BY CHITIAN
As a leader in the dump truck superstructure industry, Chitian not only focuses on producing high-quality, environmentally friendly, and energy-efficient dump truck superstructures but also offers a comprehensive range of customizable services to meet the diverse needs of different industries and application scenarios. Our custom services are flexible and varied, covering design, production, after-sales, and more, all aimed at providing optimal solutions that help clients improve efficiency, reduce operational costs, and promote sustainable development.
