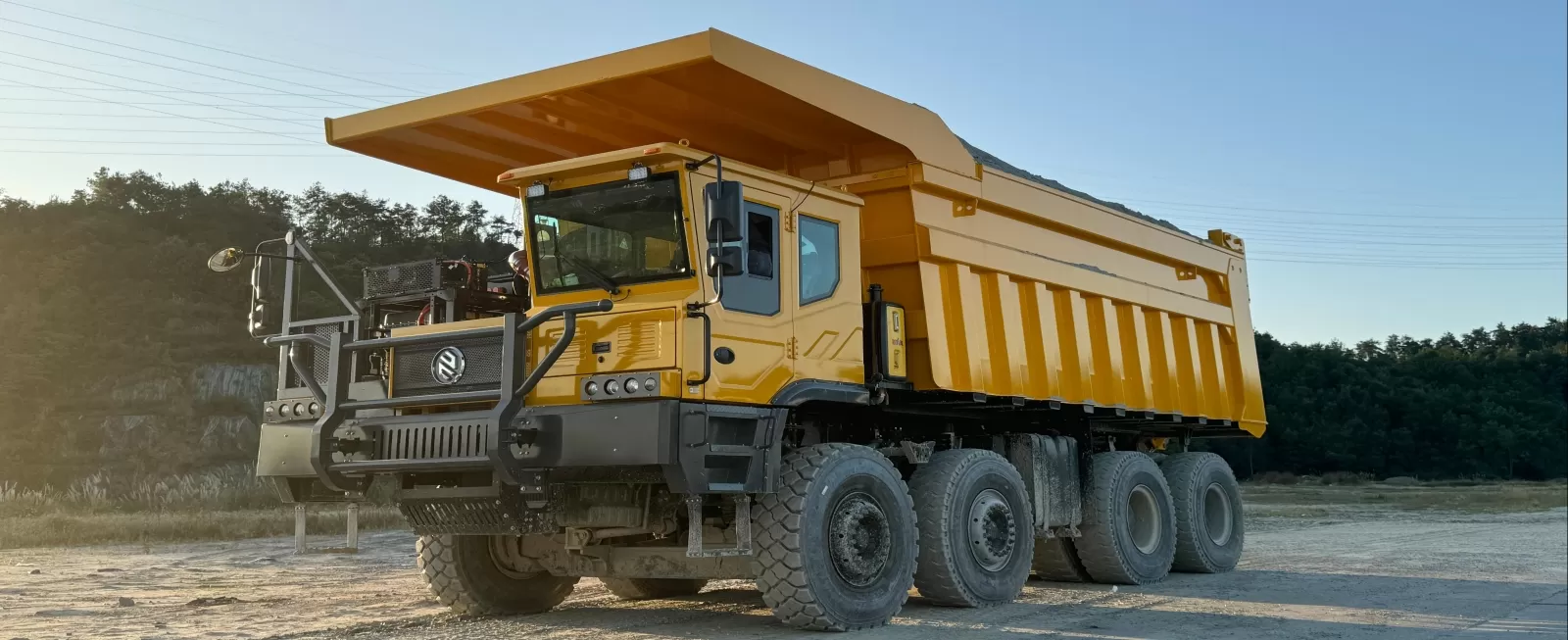

Off-Road Mining Dump Truck CT190A

Multiple power combinations

The CTZ190A Advanced Edition offers optional super hybrid, extended range, or pure electric power options, allowing for flexible selection of low-carbon or zero-carbon energy sources to reduce reliance on traditional fossil fuels and decrease carbon emissions. In addition, these power options promote the diversified use of energy, improve energy efficiency, and contribute to the development of green mining areas, supporting the achievement of sustainability goals.

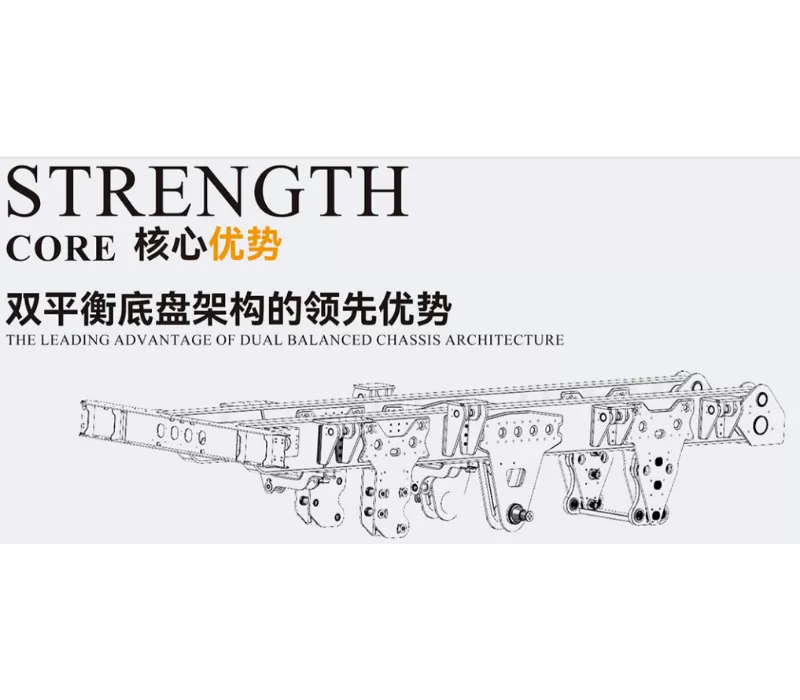

Rigid frame

With high structural strength, it effectively reduces chassis deformation and extends the service life. Excellent axle load distribution ensures outstanding ride stability, significantly reduces chassis torsion, enhances structural safety, and features a four-circuit braking system for superior braking performance.

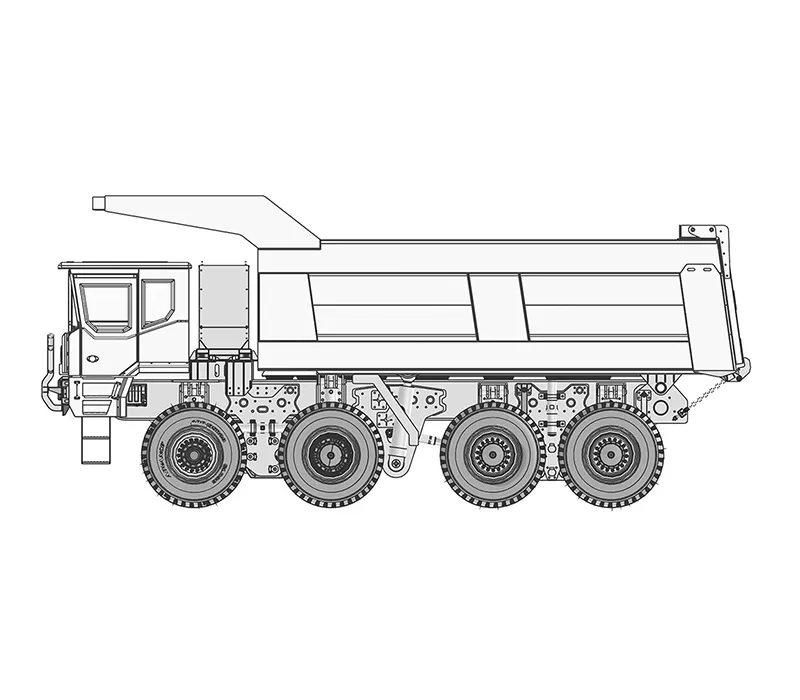

From Three Axles to Four, From 8x4 to 8x6

Equipped with patented dual-balance suspension technology, the system ensures balanced load distribution and stable operation. The dual-axle synchronous steering system enhances maneuverability and flexibility. The standard 8x6 drive configuration provides robust performance, with an optional 8x8 drive available for enhanced capability in demanding conditions.

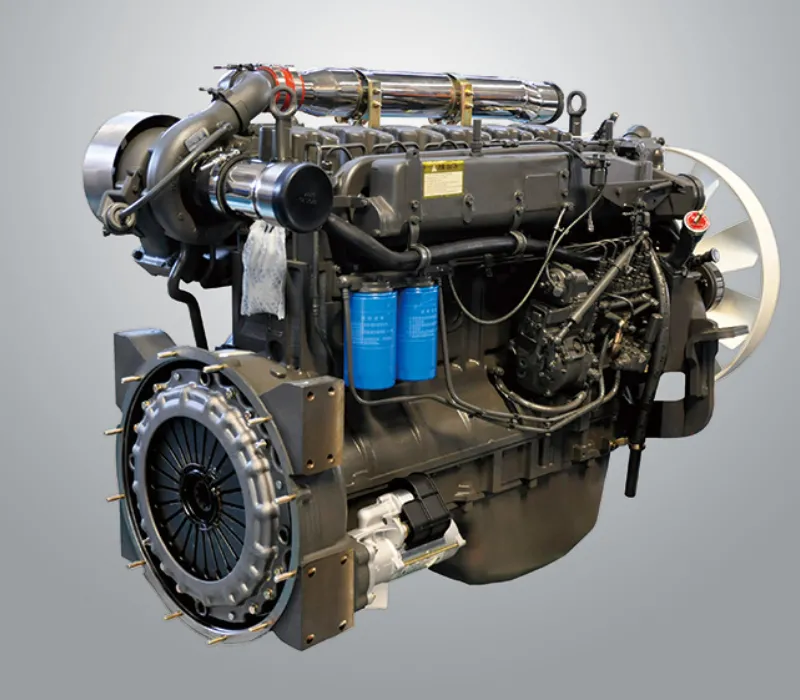

Powerful drive system

Equipped with a mining version high-power engine + reinforced mining version gearbox + large-tonnage construction vehicle axles, offering high torque and strong power. The vehicle has excellent climbing ability, high efficiency, fuel economy, and cost-effectiveness. Its compact structure allows it to handle various harsh road conditions perfectly.

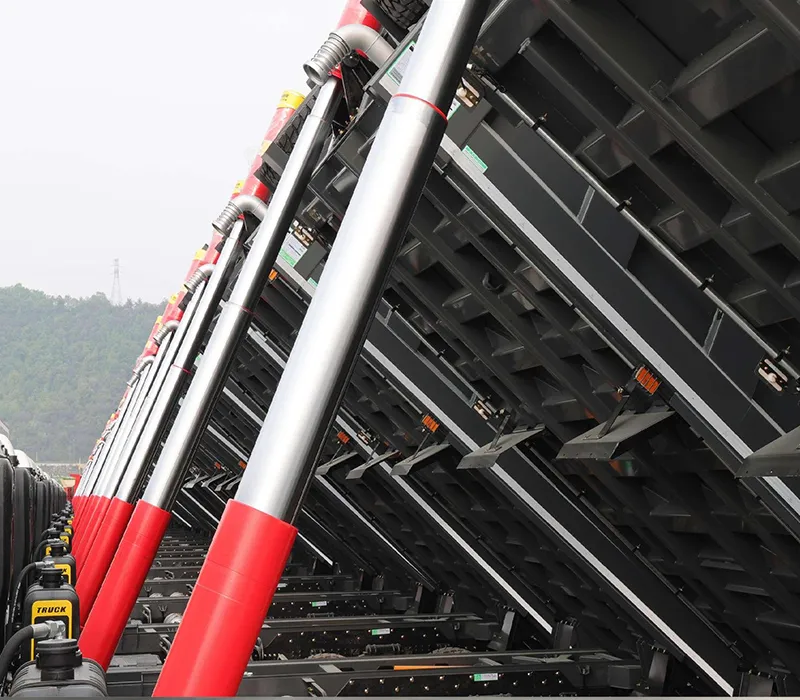

Chitian Hydraulic System : Engineered for Excellence

With nearly 30 years of experience in designing and manufacturing hydraulic cylinders, Chitian has become a trusted name in the industry. Our hydraulic cylinders are equipped with high-quality seals imported from Germany, and more than 300,000 units have been installed on vehicles worldwide. Three key features make our hydraulic cylinders stand out:

Chitian High-Polymer Polymer Hydraulic Oil Tank: Designed for Harsh Environments

Widely used in Chitian dump trucks, this high-performance polymer hydraulic oil tank is specially designed to withstand extreme environmental conditions—from scorching heat to severe cold, The primary material used is high-density polyethylene (HDPE), imported from Saudi Arabia. This oil tank offers several key advantages:

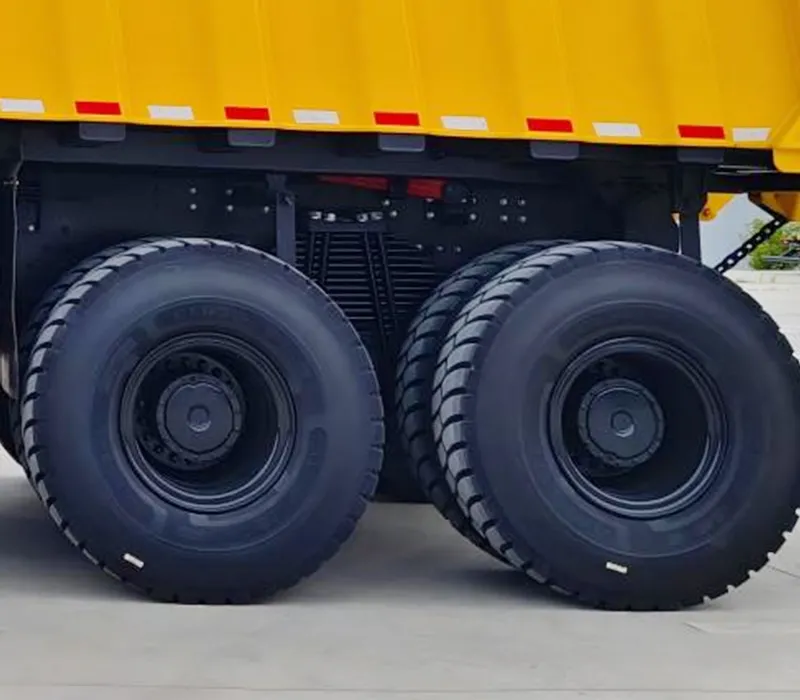

Tyre features

Significantly lowers the risk of front-wheel blowouts during heavy-load descents. 18% reduction in single-wheel load, enabling cross-platform tire applications and significantly reducing tire consumption.

Extra large load capacity, from 62m³ to 65m³

With an extra-large payload, the capacity can be increased from 62m³ to 65m³. The four-axle load-bearing structure allows for the volume to be expanded to 65m³ depending on the working environment. This design ensures more balanced load distribution, greater operational stability, and enhanced durability of the load-bearing components, making it well-equipped to handle various harsh and complex working conditions.

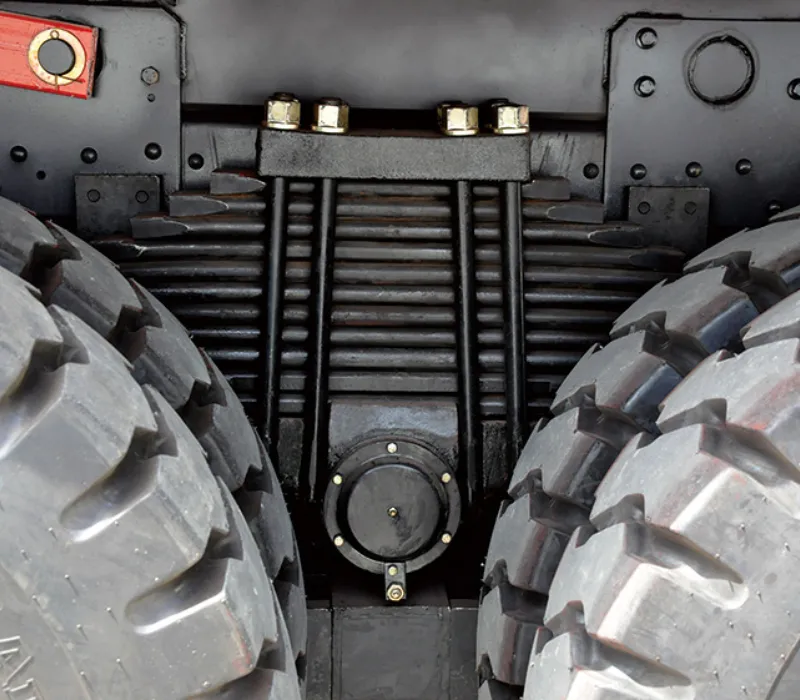

Patent U-bolts

Provided with new upgraded leaf spring (U-bolt)system, with a bearing capacity higherthan 30%compared with those in its class

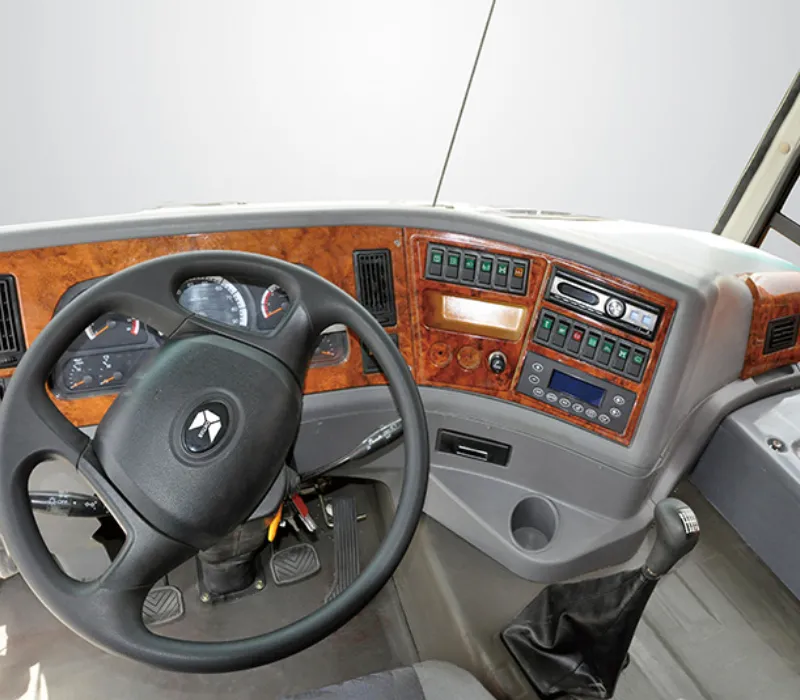

Comfortable and flexible driving experience

The mining truck is equipped with a fully hydraulic steering system, making steering light and precise. It features a left-side single-cabin design with built-in air conditioning for year-round comfort. The unique collision beam + bumper + through-frame full collision protection system ensures a significant leap in safety performance.
