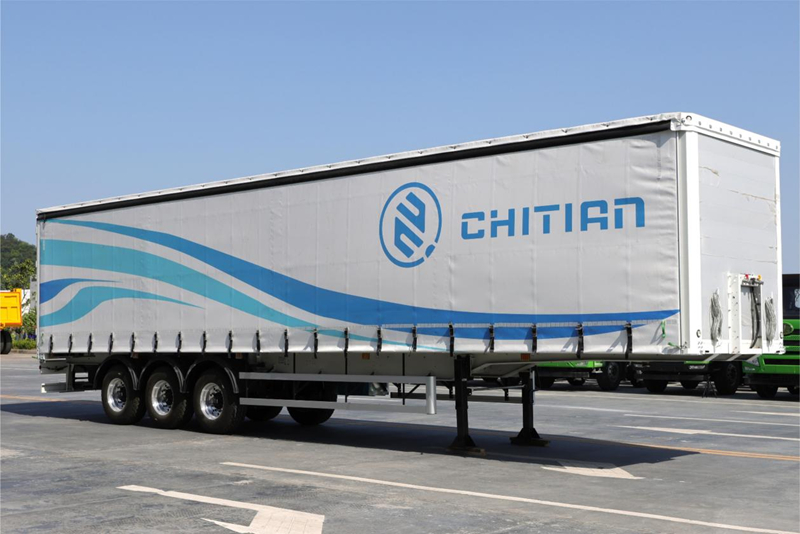

Side Curtain Semi-Trailer Case Study
Project Background
With the gradual entry of engineering vehicles into the Central Asia market, our company began conducting comprehensive research and analysis in early 2021 to address market demands, leading to the initiation of the side curtain semi-trailer product development project. Through multiple collaborations and in-depth research between the technical team and the sales department, the product development was formally approved. By the end of 2021, the first prototype was successfully rolled out. After months of rigorous road testing and modifications, the product was launched into the market and has since received high praise from end customers.
Development Journey and Market Response
Since early 2022, our company has actively promoted the market expansion of the side curtain semi-trailer. The delivery of the second prototype and the smooth completion of small-batch orders (5 units, 10 units, etc.) deepened our understanding of end customers' needs and product application environments. During this process, we continuously optimized and improved the product, enhancing its structural design and performance to further boost market competitiveness. As the product's market penetration increased, user feedback became increasingly positive, and the product has gradually established a strong brand image within the industry.
Product Advantages and Market Recognition
Our side curtain semi-trailer has successfully met diverse cargo handling needs, earning unanimous praise for its excellent load capacity, outstanding craftsmanship, and flexible configuration options. The following key advantages have been particularly well-received by the market:

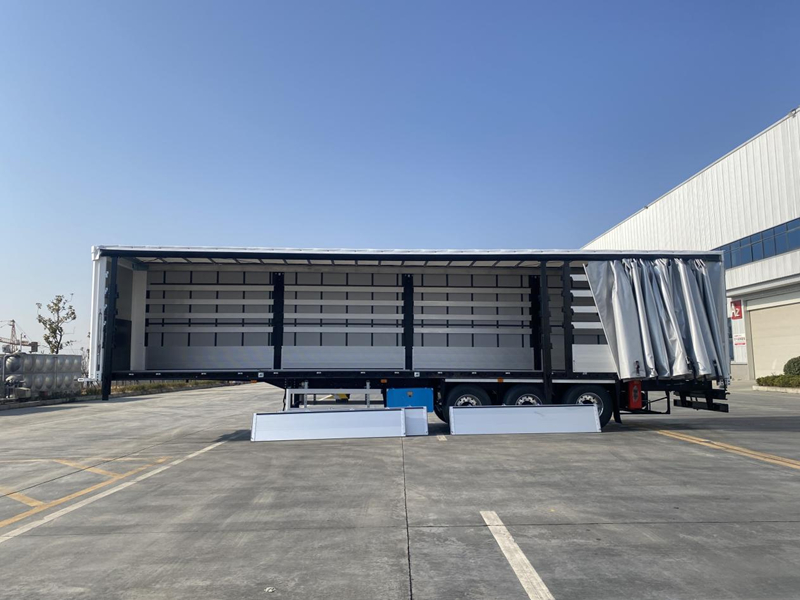

● Innovative and Efficient Loading/Unloading Design: The innovative design enables highly efficient loading and unloading operations. The integrated aluminum-alloy three-in-one track system allows for easy opening of the roof, side curtain, and rear door, while forklift access spans the entire length of the compartment, significantly reducing handling time.
● Durable High-Strength Curtain Material: The trailer features 900g/m² high-strength, cold-resistant, tear-proof curtain fabric that can be customized with printed advertisements. Combined with a hydraulic lift system, the trailer offers a maximum volume of 100m³, meeting diverse transportation needs.
● Lightweight and Economical Design: The combination of aluminum alloy and curtain fabric achieves a lightweight design that reduces the trailer's self-weight, enhancing payload capacity. Equipped with liftable single-tire axles, the trailer is fuel-efficient, durable, and economical.
● User-Friendly Safety Features: Human-centric details such as hidden telescopic ladders and dust- and rain-proof side curtains provide customers with a safer and more reliable transportation solution.
As market penetration continues to increase, the product has solidified its brand image within the industry. Moving forward, we will adhere to the principle of balancing innovation and quality, driving continuous optimization of the side curtain semi-trailer. We aim to provide more efficient and reliable transportation solutions to meet customers' growing demands. Additionally, we will intensify our efforts in technical development and market expansion to enhance product competitiveness and strive to become a global leader in the engineering transportation vehicle industry.
