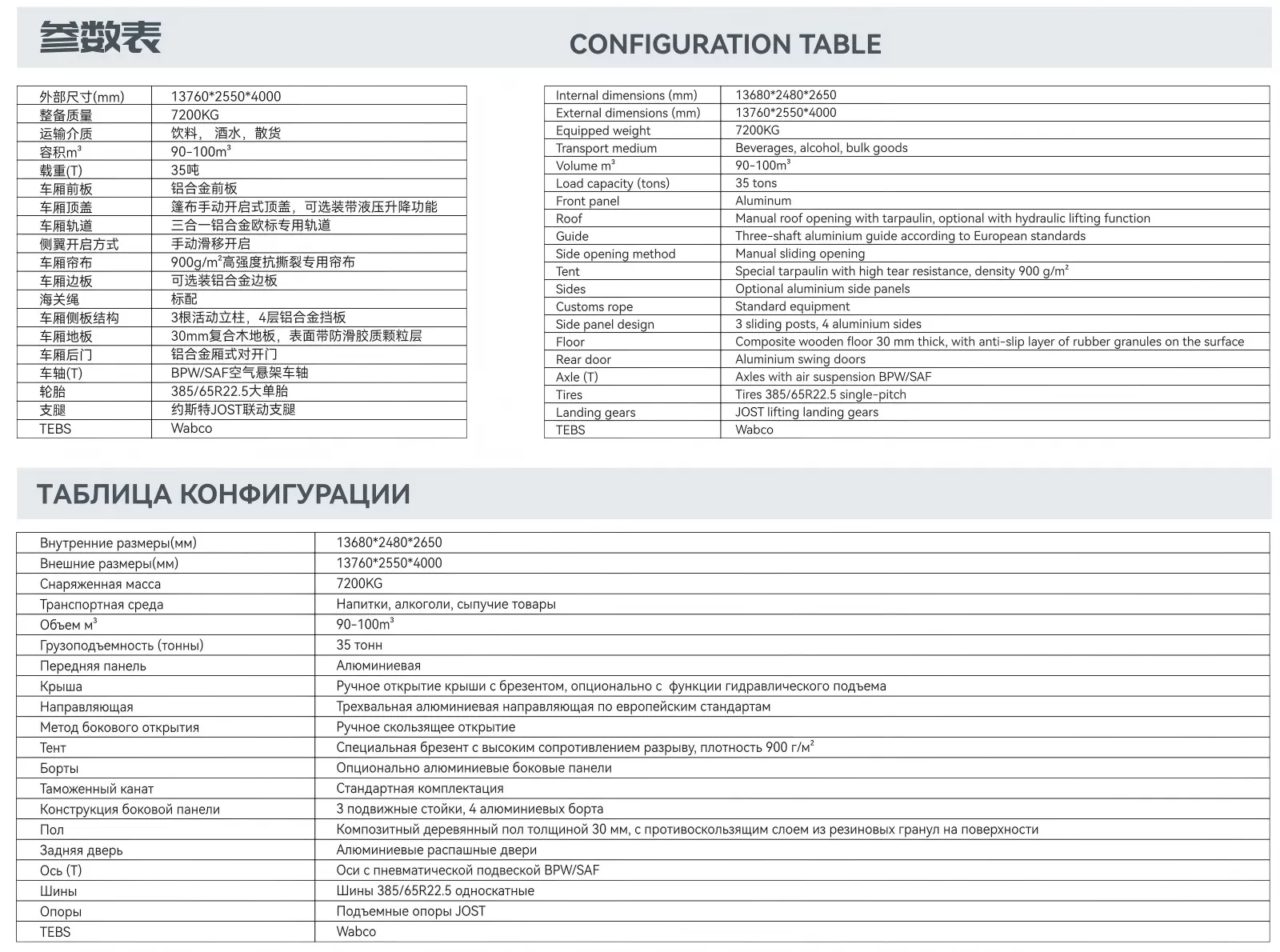

MAIN CONFIGURATION
The side curtain semi-trailer features a box design that combines aluminum alloy and curtain fabric, utilizing a flexible side curtain structure and removable side panels to provide an efficient and convenient loading and unloading experience in logistics.
| Body Type | Steel body |
| Volume | 90-100 m³ |
Product Introduction

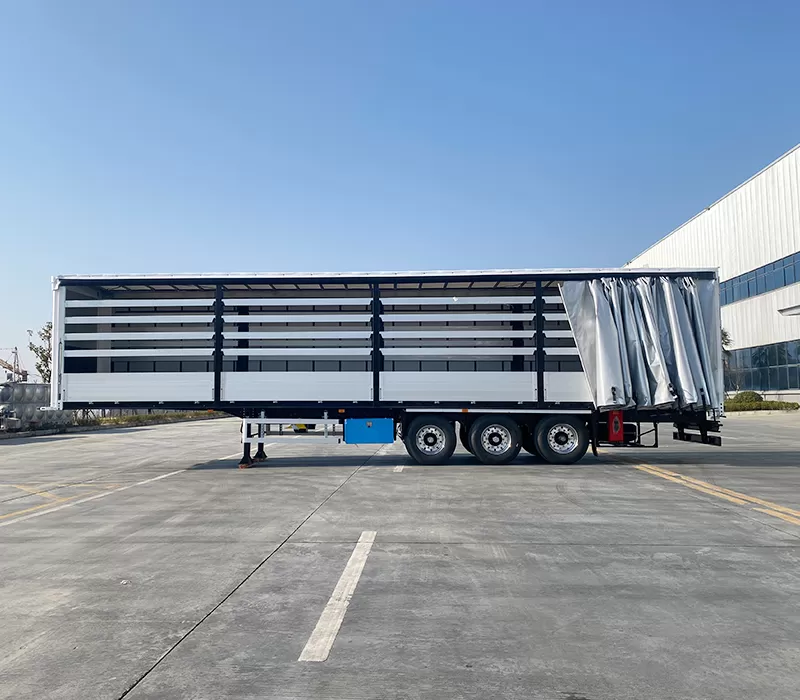

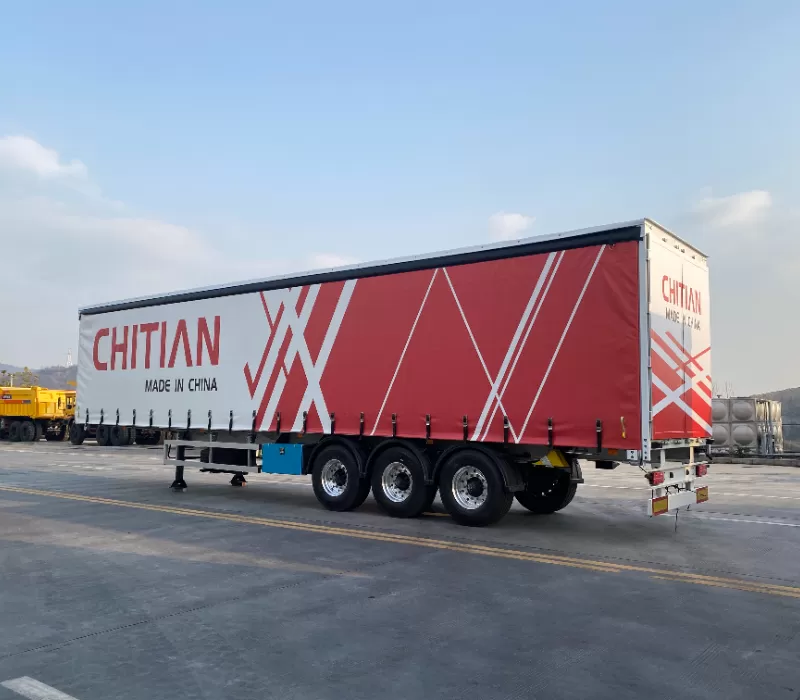

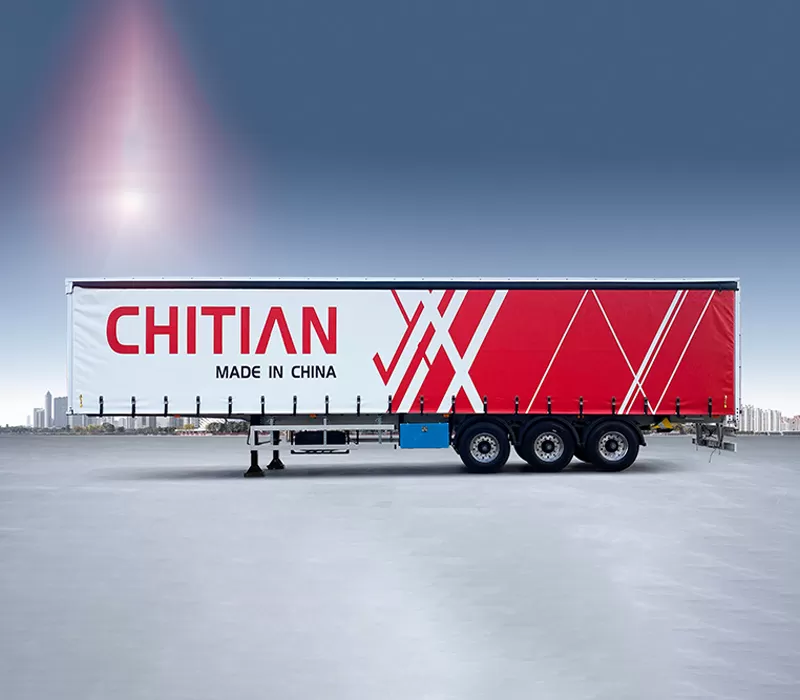

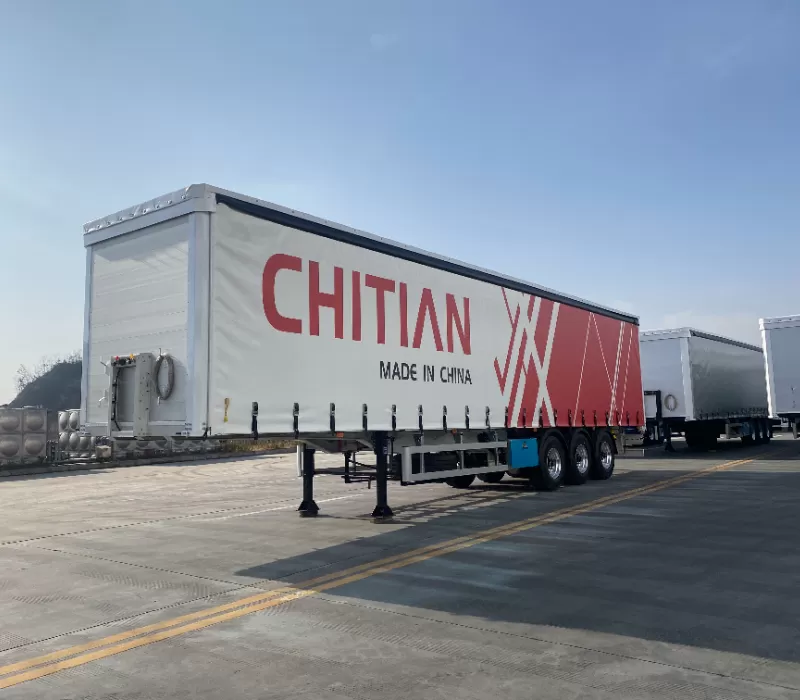

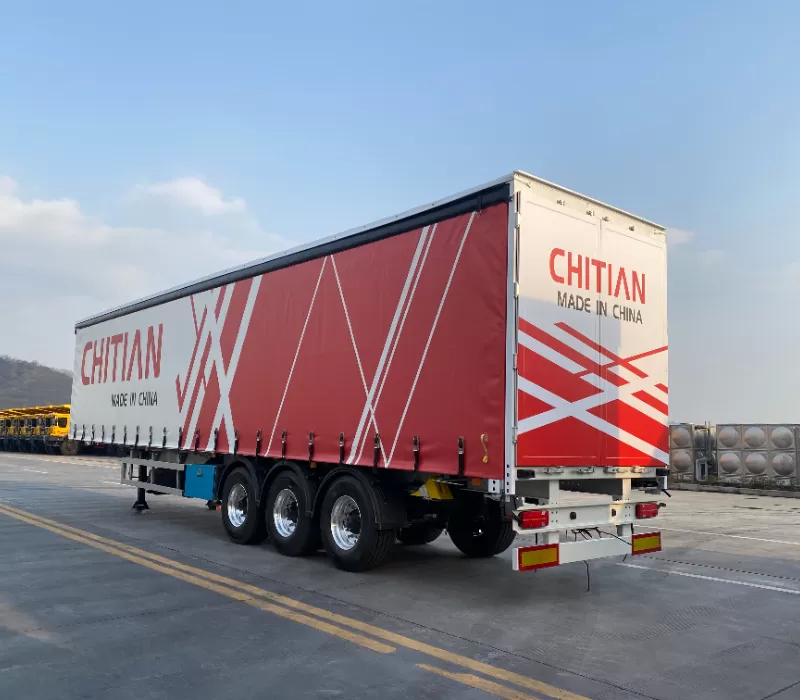

This side curtain semi-trailer features a flexible side curtain structure and detachable side panels, providing an efficient and convenient loading and unloading experience. The vehicle is equipped with an extra-large side curtain opening, making the loading and unloading process smoother without the need for the complex operations of traditional box-type vehicles. It is especially suitable for industries with high loading and unloading efficiency demands, such as logistics, warehousing, and courier transportation. Additionally, the detachable side panels further enhance the vehicle's adaptability, allowing adjustments based on the type of cargo and loading requirements, ensuring both secure transportation and improved operational efficiency.
![{vo[alt]}](data/watermark/main/20250410/67f783657e98e_.webp)
![{vo[alt]}](data/watermark/main/20250410/67f78375bb206_.webp)
![{vo[alt]}](data/watermark/main/20250410/67f78375d86cd_.webp)
![{vo[alt]}](data/watermark/main/20250410/67f783760444d_.webp)
![{vo[alt]}](data/watermark/main/20250410/67f7837627abd_.webp)
![{vo[alt]}](data/watermark/main/20250410/67f7837645754_.webp)
PRODUCT FEATURES
The entire vehicle features a box body design combining aluminum alloy and curtain fabric, reducing the weight by more than 30% compared to conventional box trailers. This design effectively increases the payload capacity and significantly boosts operational profitability.
More Features +
Convenient Loading and Unloading

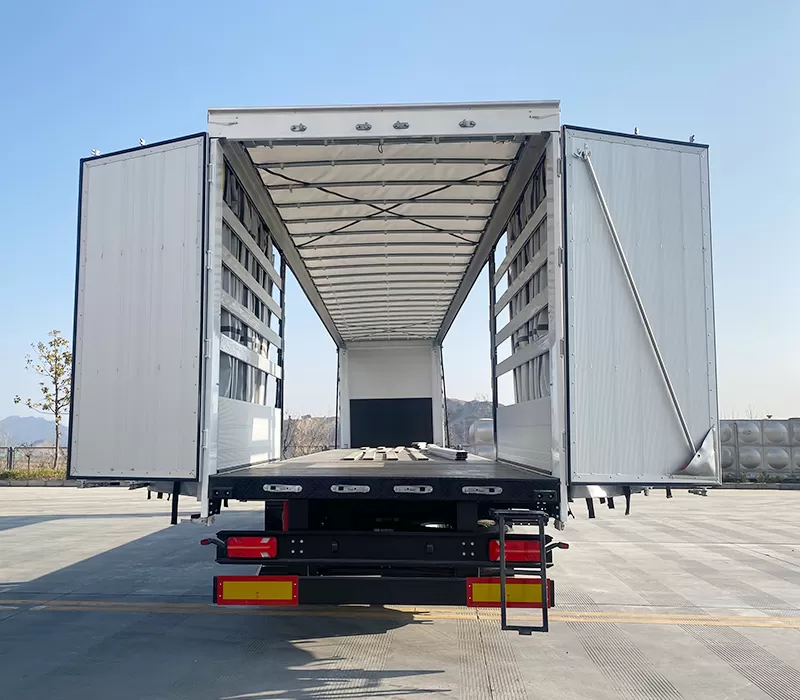

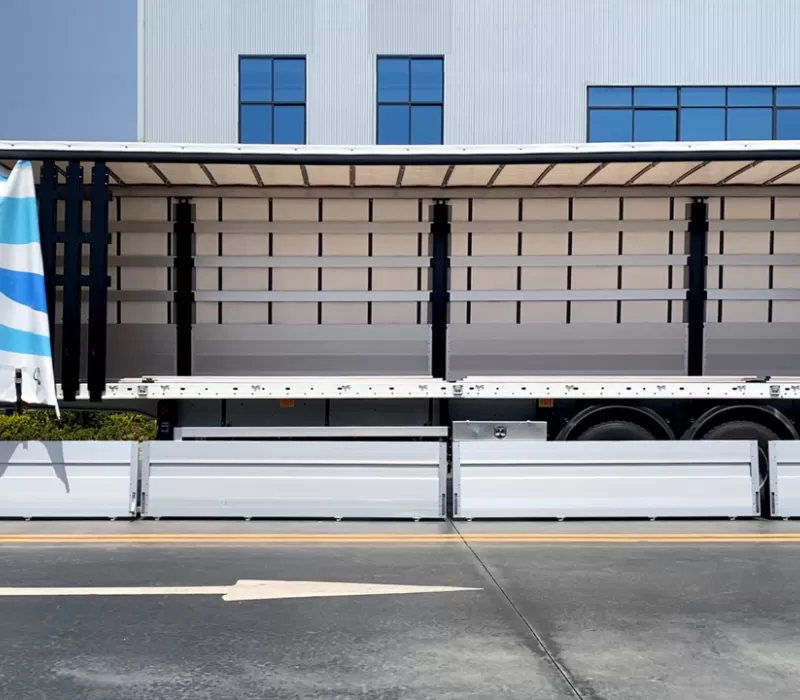

The three-in-one aluminum alloy integrated track design allows for easy opening of the roof, side curtains, side panels, and rear doors. The forklift operating width can extend across the entire length of the trailer, providing a smooth and efficient loading and unloading experience.
More Features +
The trailer has a compartment volume ranging from 85m³ to 100m³, with an optional top lifting feature to accommodate various packaging requirements for loading and unloading.
More Features +

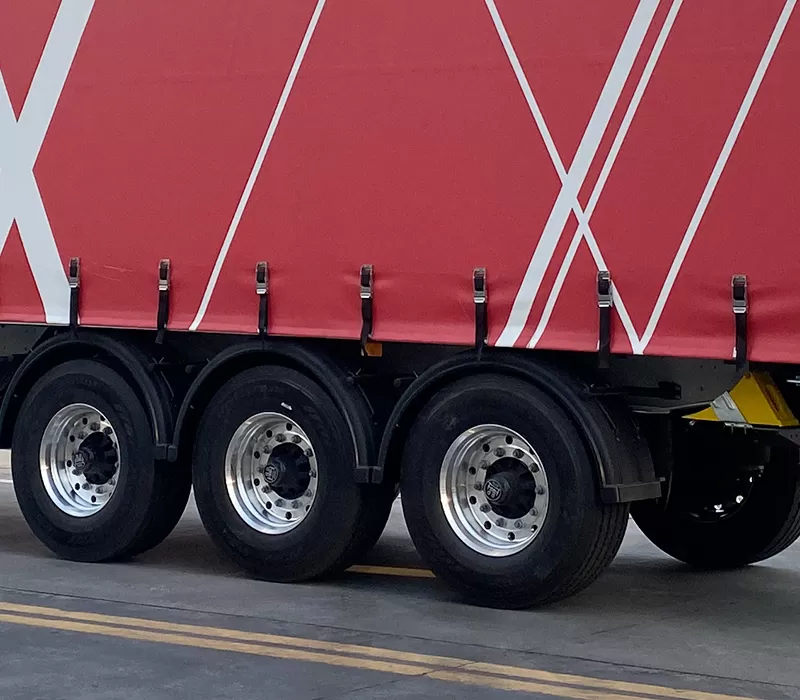

Equipped with 385 large single tires and a front axle lift bridge, this design reduces fuel consumption and extends tire lifespan when the vehicle is empty or carrying a lighter load. Compared to traditional road transport products, it is more economical and practical.
More Features +
Sturdy Floor Design and Multi-Lock External Frame

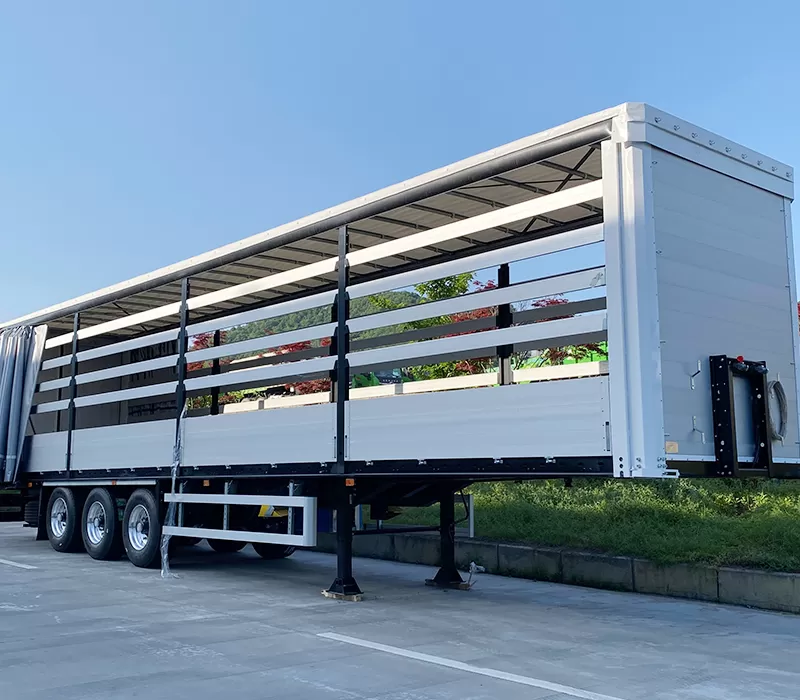

The floor is made of 28mm thick wear-resistant, waterproof bamboo wood, which reduces the overall weight of the vehicle while extending its expected lifespan. It ensures both flexibility and strength for the vehicle. The high-strength multi-lock external frame features 100mm spaced multi-lock fasteners for universal load support, with a hidden surface internally galvanized for optimal corrosion resistance.
More Features +

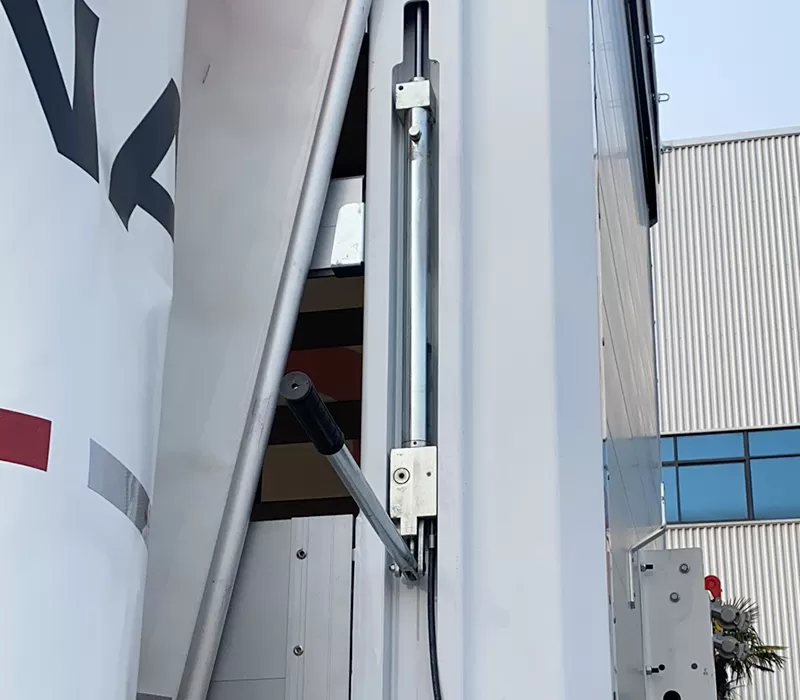

The hidden, retractable ladder ensures easy and safe climbing, with the added benefit of being easier to replace in case of damage.
More Features +
The core load-bearing system components of the trailer chassis use internationally renowned brands such as BPW air suspension axles and JOST landing gear, offering higher reliability and stronger load capacity.
More Features +MAIN CONFIGURATION
