U-Shaped Dump Truck

The U-shaped dump truck is a uniquely designed vehicle with a U-shaped cargo compartment structure. Its aesthetically pleasing, streamlined design gives it a modern and refined look. Compared to traditional rectangular box dump trucks, the U-shaped cargo compartment is lighter, which effectively improves transportation efficiency. The streamlined design on the exterior makes cleaning easier, reducing material residue on the sides of the cargo compartment and maintaining its cleanliness. This design is ideal for industries that require frequent cleaning of the cargo compartment, improving work efficiency and extending the lifespan of the vehicle.

Cooperate with Us +

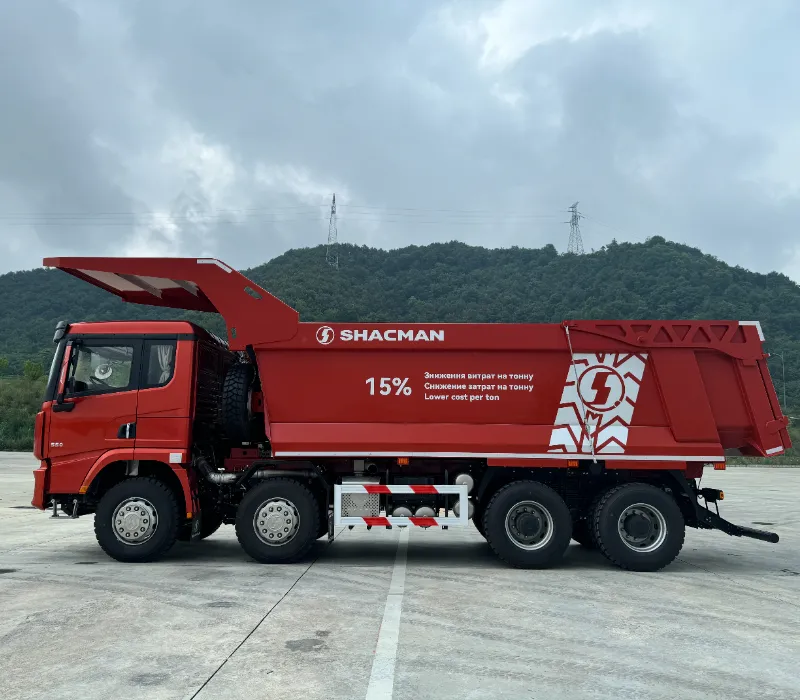

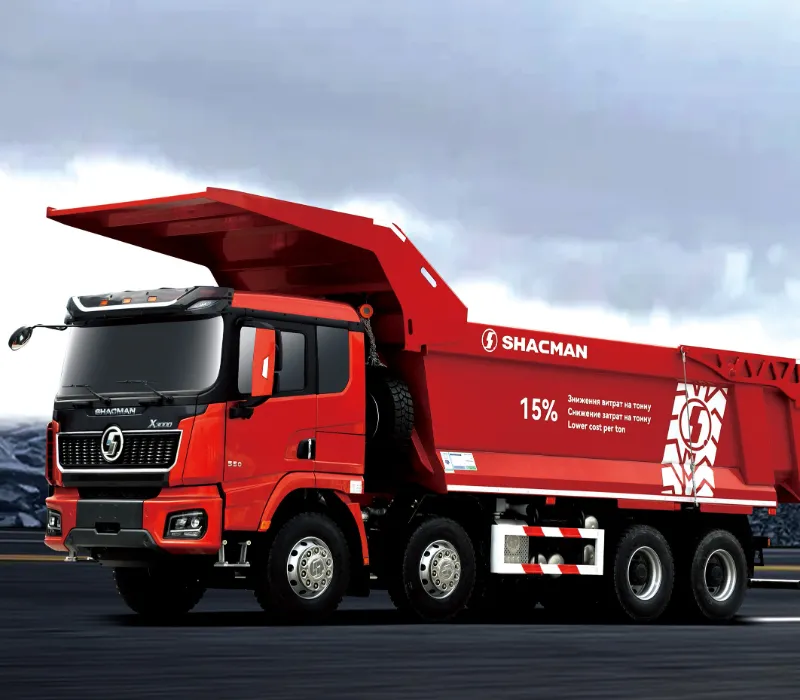

Heavy-duty Road Mining Dump Truck

This dump truck is purpose-built for rugged mining environments, delivering optimal performance in ore transport and unloading. It features a front-mounted hydraulic lifting system, a reinforced cargo body structure, an extended front canopy, and a forward-sloped front panel for improved material flow. The rear gate adopts an F-type mechanical hinge design for smooth and secure opening, ensuring efficient operation even under the most demanding conditions.

Body Type	U-Shaped mining steel body
Drive Type	8x4

Product Introduction

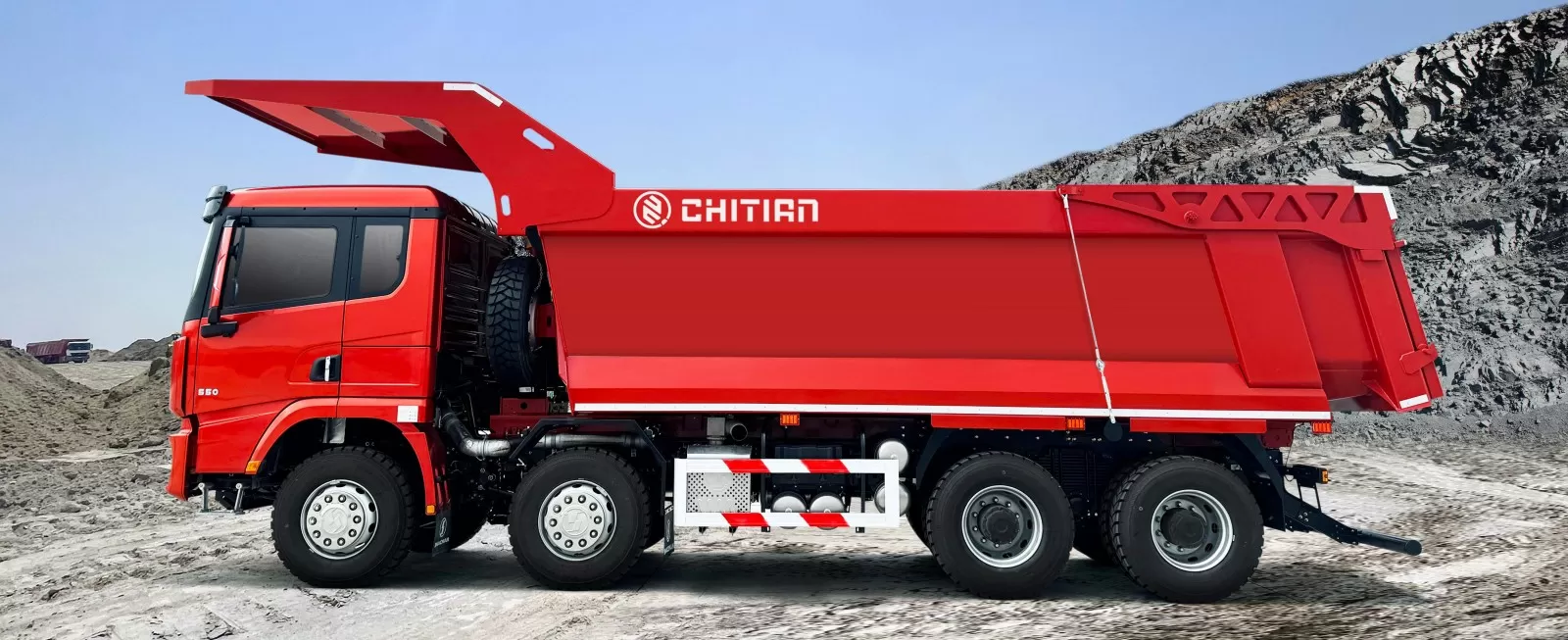

Heavy-Duty Rear Discharge Mining Dump Truck

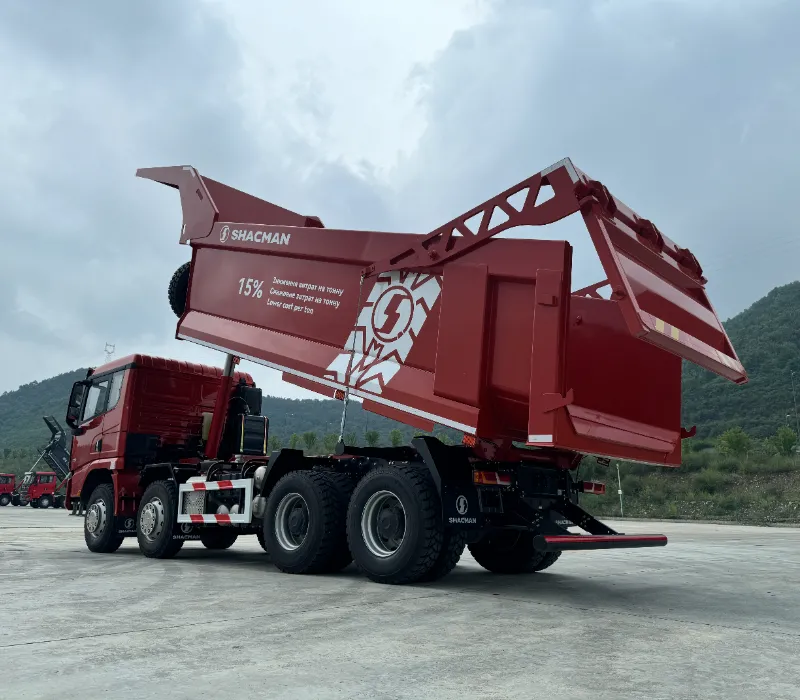

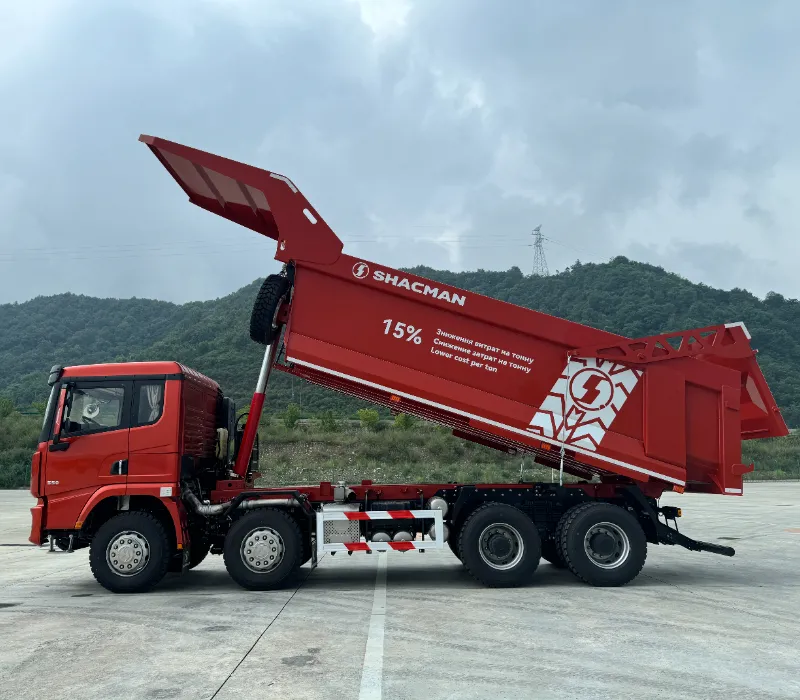

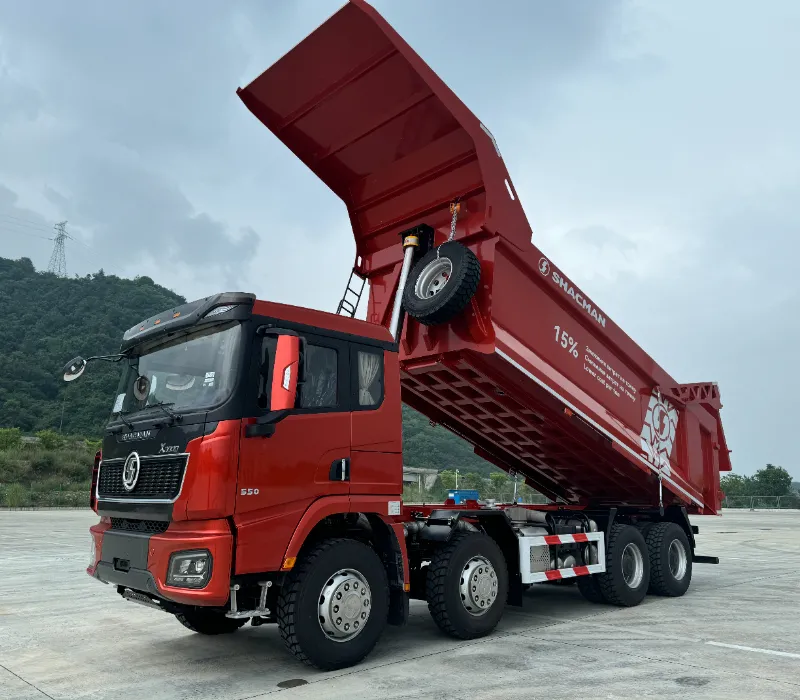

Engineered for challenging terrains and harsh working conditions, this on-road mining dump truck is purpose-built for ore transportation. It features a front-mounted hydraulic lifting system, offering powerful performance, high efficiency, and exceptional stability.

Key Design Highlights:

Streamlined U-shaped Cargo Body with a forward-sloped front panel — sleek, practical design that minimises material residue and ensures easy cleaning. High-Strength Materials & Reinforced Floor Structure — delivering superior load-bearing capacity and durability. Upturned Rear with F-type Mechanical Hinged Tailgate — provides a wider opening angle for smoother and more efficient loading and unloading. Extended Front Canopy — enhances protection for the cab and driver safety. This model is a reliable solution tailored for the rigorous demands of mining operations.

PRODUCT FEATURES

High-Quality Shacman Chassis: Providing a Solid Foundation for Your Transport Needs

The chassis we use is sourced from Shacman, an industry-leading manufacturer of heavy-duty trucks. Shacman chassis are renowned for their exceptional load-bearing capacity, stability, and durability, making them particularly suitable for harsh environments such as mining sites and construction sites.

More Features +

Chitian Hydraulic System : Engineered for Excellence

With nearly 30 years of experience in designing and manufacturing hydraulic cylinders, Chitian has become a trusted name in the industry. Our hydraulic cylinders are equipped with high-quality seals imported from Germany, and more than 300,000 units have been installed on vehicles worldwide. Three key features make our hydraulic cylinders stand out:

More Features +

Chitian High-Polymer Polymer Hydraulic Oil Tank: Designed for Harsh Environments

Widely used in Chitian dump trucks, this high-performance polymer hydraulic oil tank is specially designed to withstand extreme environmental conditions—from scorching heat to severe cold, The primary material used is high-density polyethylene (HDPE), imported from Saudi Arabia. This oil tank offers several key advantages:

More Features +

U-Shaped Cargo Body Design

The U-shaped, streamlined body design minimises material adhesion and residue during transport and unloading. Its lighter weight contributes to improved fuel efficiency, while the reinforced floor structure enhances durability and extends the service life of the cargo body.

More Features +

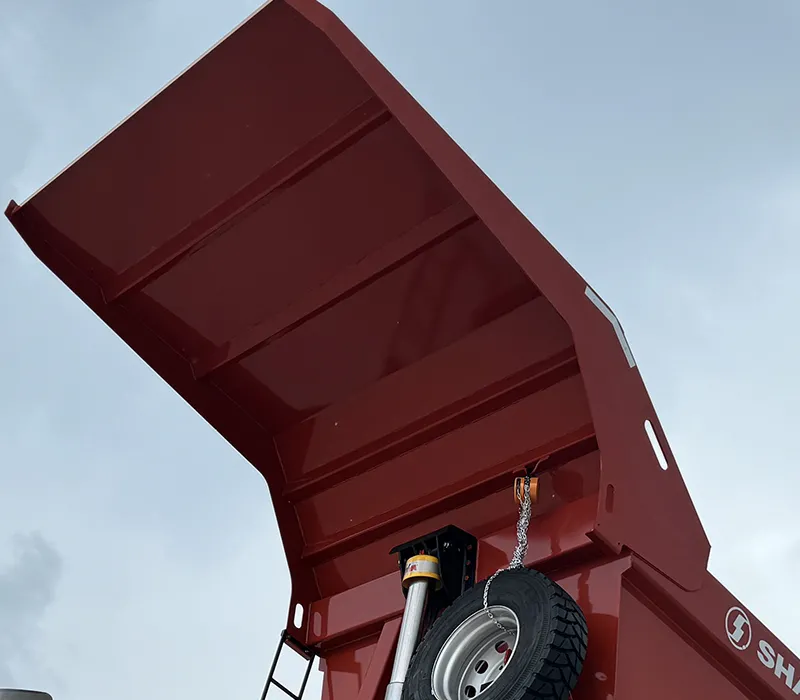

Extended Front Overhang

The extended front canopy provides superior protection for the cab, reducing the risk of impact from falling or shifting materials.

More Features +

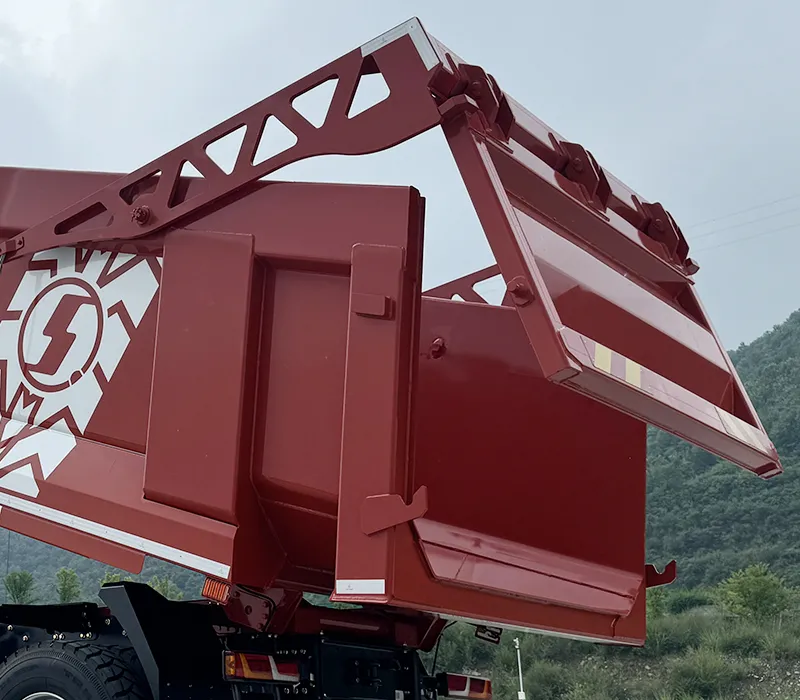

F-type mechanical hinges

The wider opening angle allows for smoother, faster loading and unloading, improving overall operational efficiency.

More Features +

CUSTOM SERVICES OFFERED BY CHITIAN

As a leader in the dump truck superstructure industry, Chitian not only focuses on producing high-quality, environmentally friendly, and energy-efficient dump truck superstructures but also offers a comprehensive range of customizable services to meet the diverse needs of different industries and application scenarios. Our custom services are flexible and varied, covering design, production, after-sales, and more, all aimed at providing optimal solutions that help clients improve efficiency, reduce operational costs, and promote sustainable development.
