U-Shaped Dump Truck

The U-shaped dump truck is a uniquely designed vehicle with a U-shaped cargo compartment structure. Its aesthetically pleasing, streamlined design gives it a modern and refined look. Compared to traditional rectangular box dump trucks, the U-shaped cargo compartment is lighter, which effectively improves transportation efficiency. The streamlined design on the exterior makes cleaning easier, reducing material residue on the sides of the cargo compartment and maintaining its cleanliness. This design is ideal for industries that require frequent cleaning of the cargo compartment, improving work efficiency and extending the lifespan of the vehicle.

Cooperate with Us +

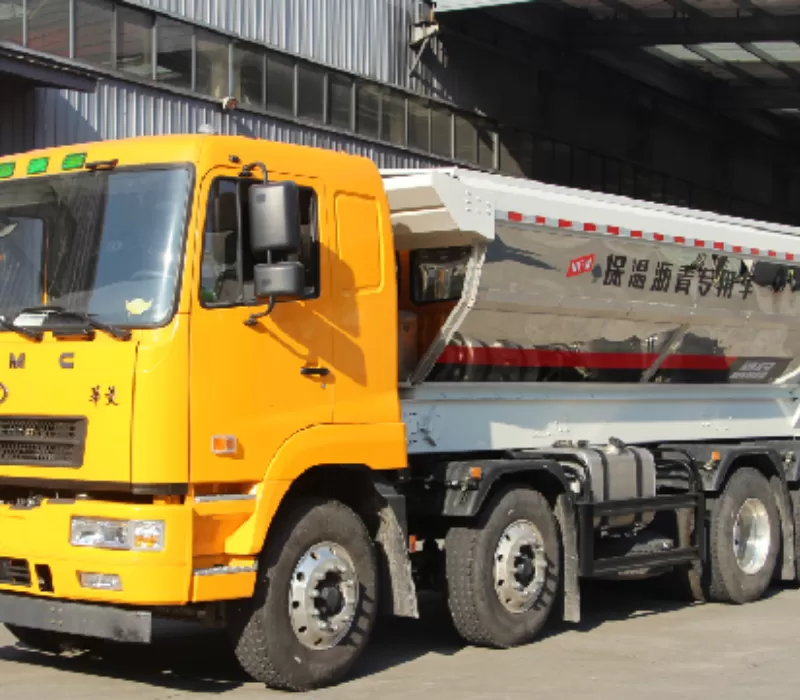

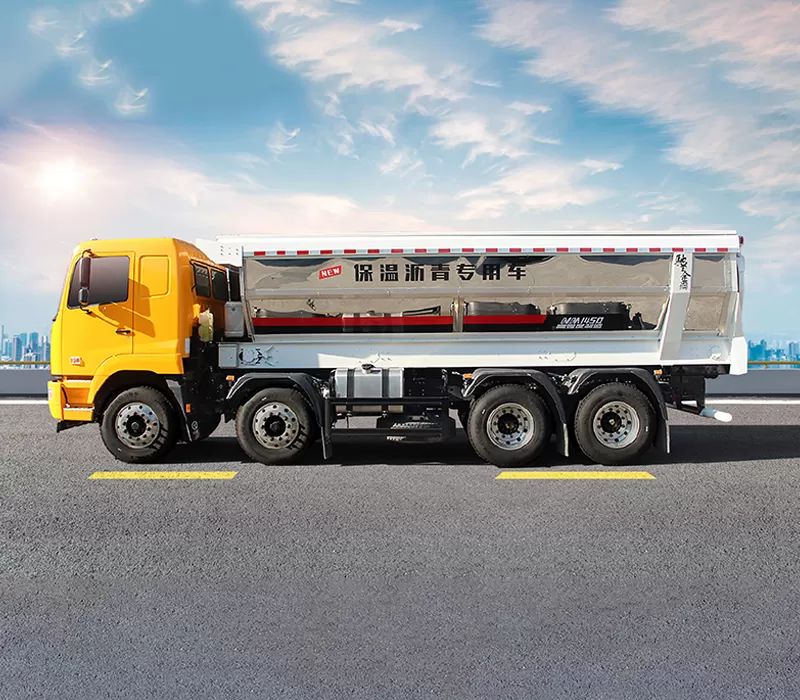

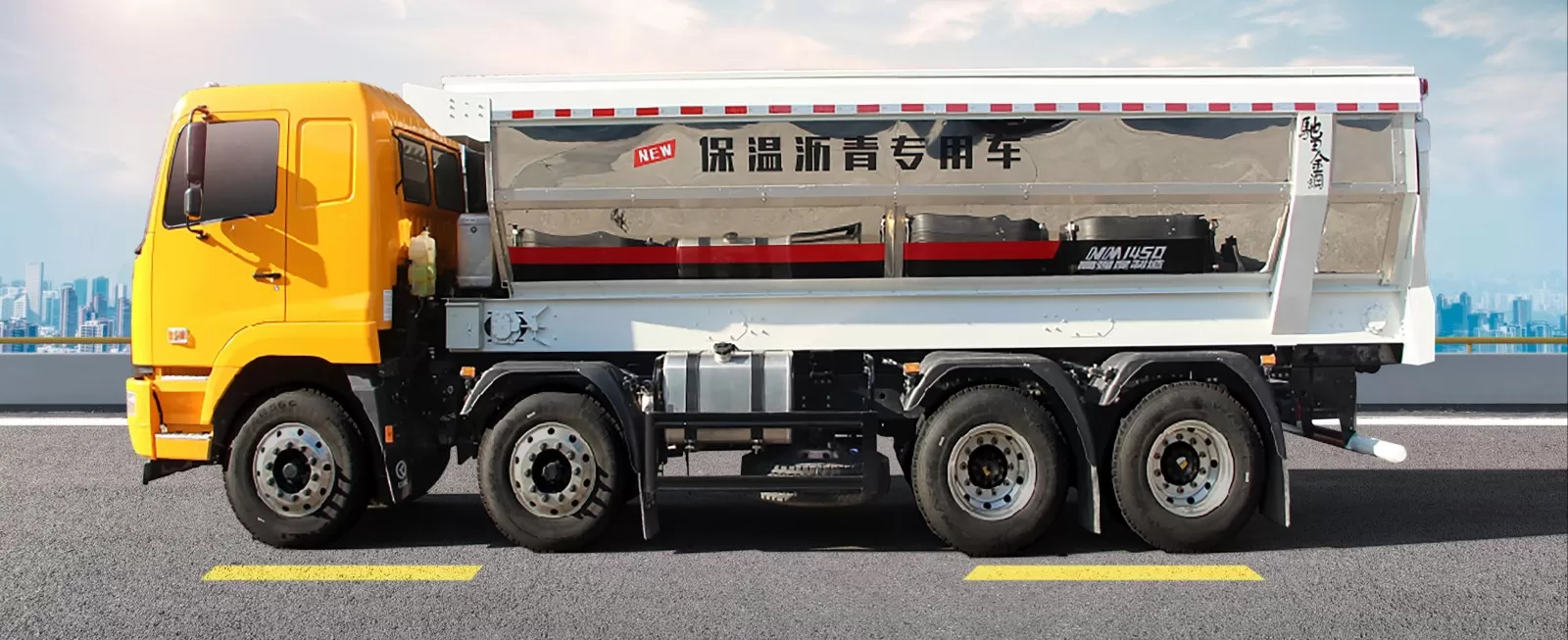

Insulated Asphalt Transport Truck

Asphalt Insulated Transport Truck with Movable Floor

This vehicle is specially designed for transporting high-temperature asphalt and other heat-sensitive materials. Its structure and thermal insulation features ensure stable temperature control during transit, meeting the demanding requirements of asphalt transport with safety and efficiency.

Body Type	U-Shaped steel body
Drive Type	8x4

Product Introduction

Asphalt Insulated Transport Truck with Movable Floor (Non-Lifting Design)
This specialised dump truck features a non-lifting structure and unloads materials through a high-speed conveyor belt system at the rear of the cargo body. Both sides of the body are lined with high-performance polymer insulation to maintain asphalt temperature and prevent solidification during operation.

Key Features:

Unrestricted Unloading: Materials can be discharged at any time, regardless of site conditions—ideal for flexible on-site operations.Wide Applicability: The non-lifting design offers high ground clearance, making the vehicle compatible with a wide range of pavers and suitable for various road construction scenarios.Excellent Sealing Performance: The rear tailgate is fully automated with a hydraulic opening and closing system, while the top is equipped with an electrically controlled sealing cover to ensure secure transport of hot mix materials.

PRODUCT FEATURES

High-Quality Shacman Chassis: Providing a Solid Foundation for Your Transport Needs

The chassis we use is sourced from Shacman, an industry-leading manufacturer of heavy-duty trucks. Shacman chassis are renowned for their exceptional load-bearing capacity, stability, and durability, making them particularly suitable for harsh environments such as mining sites and construction sites.

More Features +

Chitian Hydraulic System : Engineered for Excellence

With nearly 30 years of experience in designing and manufacturing hydraulic cylinders, Chitian has become a trusted name in the industry. Our hydraulic cylinders are equipped with high-quality seals imported from Germany, and more than 300,000 units have been installed on vehicles worldwide. Three key features make our hydraulic cylinders stand out:

More Features +

Chitian High-Polymer Polymer Hydraulic Oil Tank: Designed for Harsh Environments

Widely used in Chitian dump trucks, this high-performance polymer hydraulic oil tank is specially designed to withstand extreme environmental conditions—from scorching heat to severe cold, The primary material used is high-density polyethylene (HDPE), imported from Saudi Arabia. This oil tank offers several key advantages:

More Features +

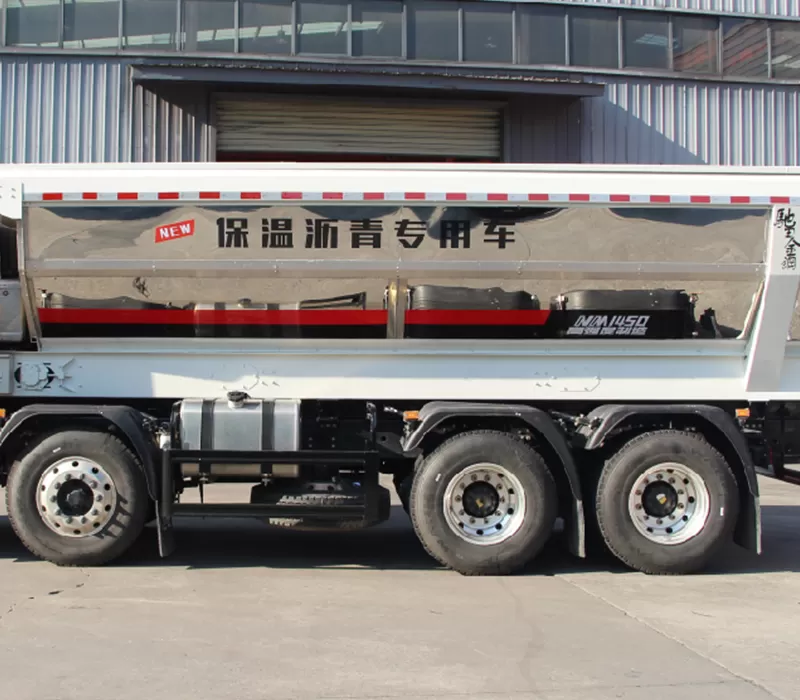

Insulation Design

Both sides of the cargo body are lined with high-performance polymer insulation materials, effectively maintaining asphalt temperature and preventing solidification of the asphalt mix during operation.

More Features +

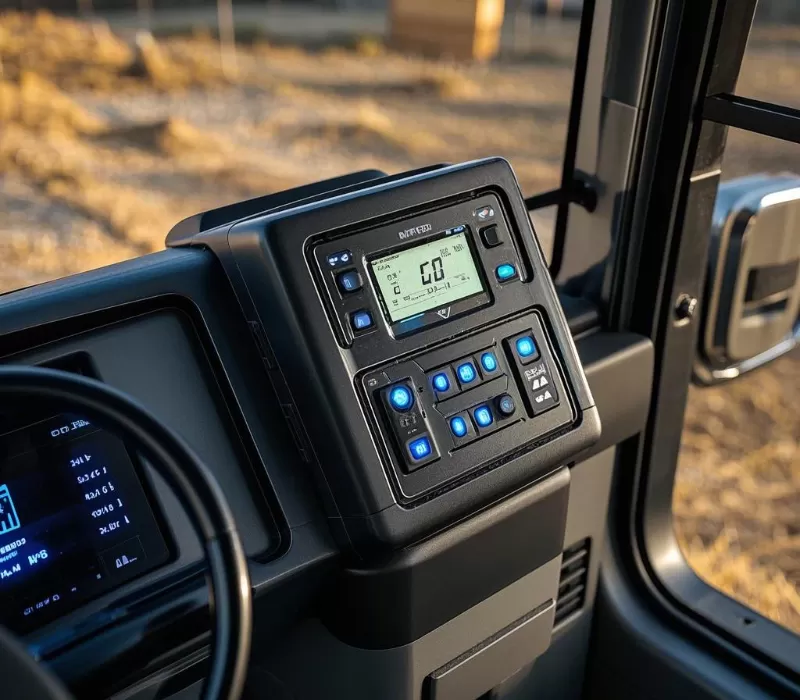

Temperature Control System

The system provides real-time monitoring of the cargo body temperature to ensure the asphalt remains within the optimal transport range, guaranteeing material quality and consistent paving performance.

More Features +

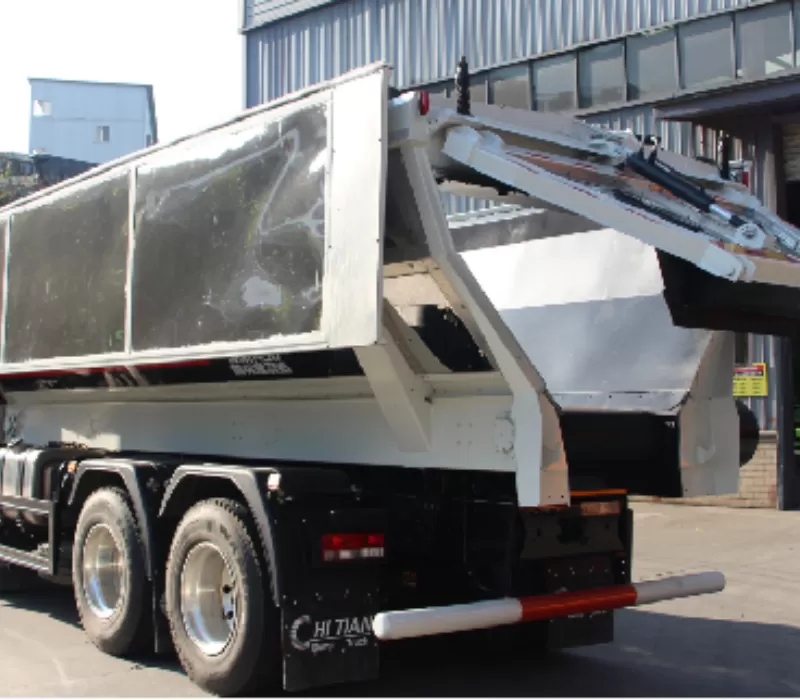

High-Performance Eco-Friendly Sealing System

The rear tailgate features a fully automated hydraulic opening and closing mechanism, while the top of the cargo body is equipped with an electrically controlled sealing cover. This advanced sealing system offers excellent airtight performance, enables fast opening and closing, and significantly enhances operational efficiency.

More Features +

CUSTOM SERVICES OFFERED BY CHITIAN

As a leader in the dump truck superstructure industry, Chitian not only focuses on producing high-quality, environmentally friendly, and energy-efficient dump truck superstructures but also offers a comprehensive range of customizable services to meet the diverse needs of different industries and application scenarios. Our custom services are flexible and varied, covering design, production, after-sales, and more, all aimed at providing optimal solutions that help clients improve efficiency, reduce operational costs, and promote sustainable development.
